1473565-6

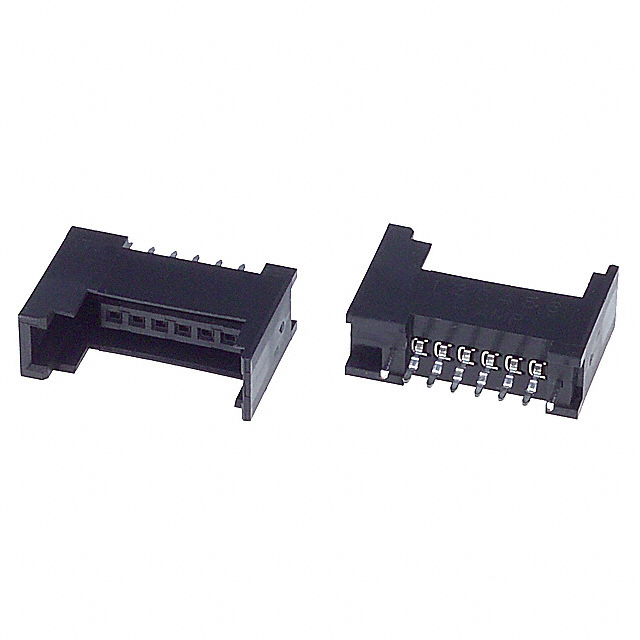

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1473565-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1473565-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1473565-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 6POS VERT THRU HOLE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.583 | $1.518 | $1.265 | $1.076 | $0.917 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1473565-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 6POS VERT THRU HOLE | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 33164 pcs | Data sheet | 1473565 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 32VDC |
| Termination | Press-Fit, Solder | Style | Board to Cable/Wire |
| Series | RITS | Row Spacing - Mating | - |
| Pitch - Mating | 0.079" (2.00mm) | Packaging | Bulk |
| Other Names | A29169 | Operating Temperature | -30°C ~ 75°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Thermoplastic, Glass Filled | Insulation Height | 0.512" (13.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Latch Holder |
| Detailed Description | 6 Position Header Connector 0.079" (2.00mm) Through Hole Gold | Current Rating | - |
| Contact Type | Female Socket | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.130" (3.30mm) |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 8.00µin (0.203µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | - |
