1470511-1

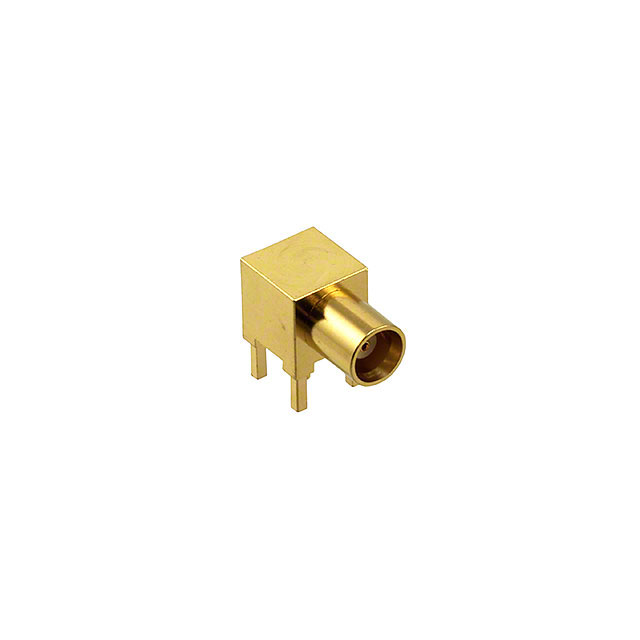

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1470511-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1470511-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1470511-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MCX JACK R/A 50 OHM PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
Product parameter
| Part Number | 1470511-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MCX JACK R/A 50 OHM PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4469 pcs | Data sheet | |
| Category | Connectors, Interconnects | Voltage Rating | 335V |
| Shield Termination | Solder | Series | - |
| Packaging | Bulk | Other Names | A119001 |
| Operating Temperature | -65°C ~ 165°C | Number of Ports | 1 |
| Mounting Type | Through Hole, Right Angle | Mounting Feature | - |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 500 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insertion Loss | 0.1dB |
| Ingress Protection | - | Includes | - |
| Impedance | 50 Ohm | Housing Color | Gold |
| Frequency - Max | 6GHz | Features | - |
| Fastening Type | Snap-On | Dielectric Material | - |
| Detailed Description | MCX Connector Jack, Female Socket 50 Ohm Through Hole, Right Angle Solder | Contact Termination | Solder |
| Connector Type | Jack, Female Socket | Connector Style | MCX |
| Center Contact Plating | - | Center Contact Material | - |
| Cable Group | - | Body Material | - |
| Body Finish | Gold |
