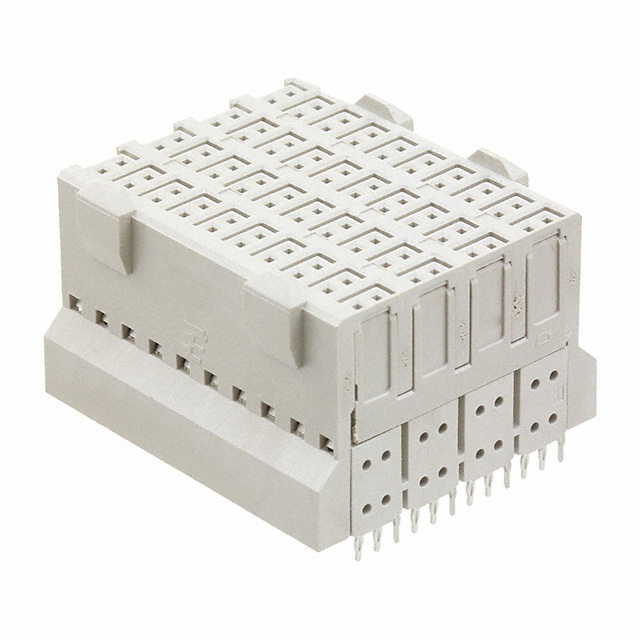

1469362-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1469362-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1469362-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1469362-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 80POS 8ROW VERT HM-Z |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 20 pcs | 40 pcs | 60 pcs | 100 pcs |
|---|---|---|---|---|---|
| $22.796 | $21.454 | $20.783 | $19.442 | $18.37 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1469362-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 80POS 8ROW VERT HM-Z | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1847 pcs | Data sheet | 1469362 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | Z-PACK HM-Zd |
| Pitch | 0.098" (2.50mm) | Packaging | Tray |
| Other Names | 1469362-1-ND A114847 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 8 | Number of Positions Loaded | All |
| Number of Positions | 120 | Number of Columns | 10 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 11 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Features | - |
| Current Rating | 0.700A | Contact Layout, Typical | 80 Single Signal, 40 Ground |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | Backplane | Connector Type | Receptacle, Female Sockets |
| Connector Style | High Speed | Color | - |
