1469169-1

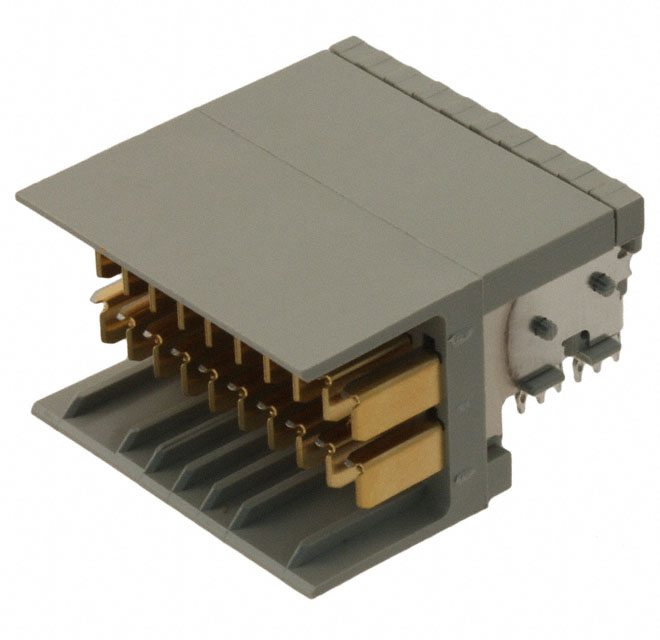

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1469169-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1469169-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1469169-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 40POS R/A HM-ZD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1469169-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 40POS R/A HM-ZD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5282 pcs | Data sheet | 1469169 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Press-Fit | Series | Z-PACK HM-Zd |
| Pitch | 0.098" (2.50mm) | Packaging | Tube |
| Other Names | 14691691 A101780 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 4 | Number of Positions Loaded | All |
| Number of Positions | 60 | Number of Columns | 10 |
| Mounting Type | Board Edge, Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | Shielded | Current Rating | - |
| Contact Layout, Typical | 40 Signal, 20 Ground | Contact Finish Thickness | - |
| Contact Finish | - | Connector Usage | Coplanar, Daughtercard |
| Connector Type | Header, Male Pins and Blades | Connector Style | High Speed |
| Color | - |
