1452368-1

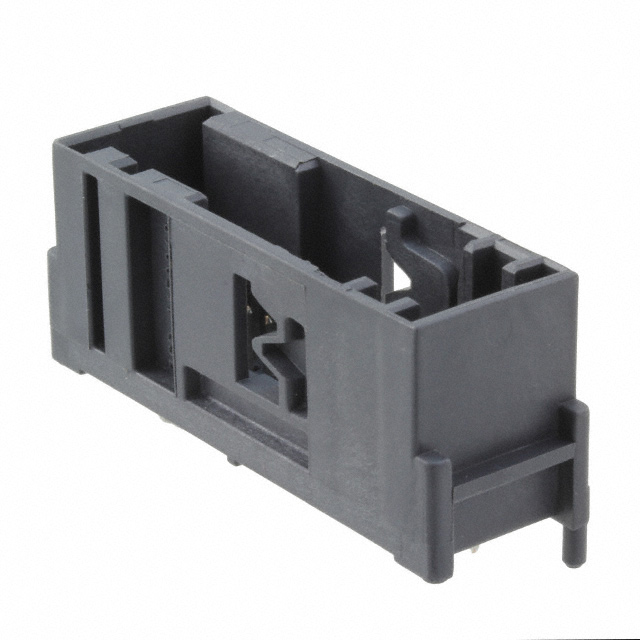

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1452368-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1452368-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1452368-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR PLUG 32POS PCB TAB |
| Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.727 | $1.656 | $1.38 | $1.173 | $1.00 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1452368-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PLUG 32POS PCB TAB | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Quantity Available | 34995 pcs | Data sheet | 1452368 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | A107817 | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 32 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS Compliant |
| Insulation Material | Polyethylene Terephthalate (PET), Glass Filled | Insulation Height | 0.795" (20.20mm) |
| Insulation Color | Gray | Ingress Protection | - |
| Features | Board Guide | Fastening Type | Lever Lock |
| Detailed Description | Connector Header Through Hole 32 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Tab | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | 0.110" (2.79mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | - |
