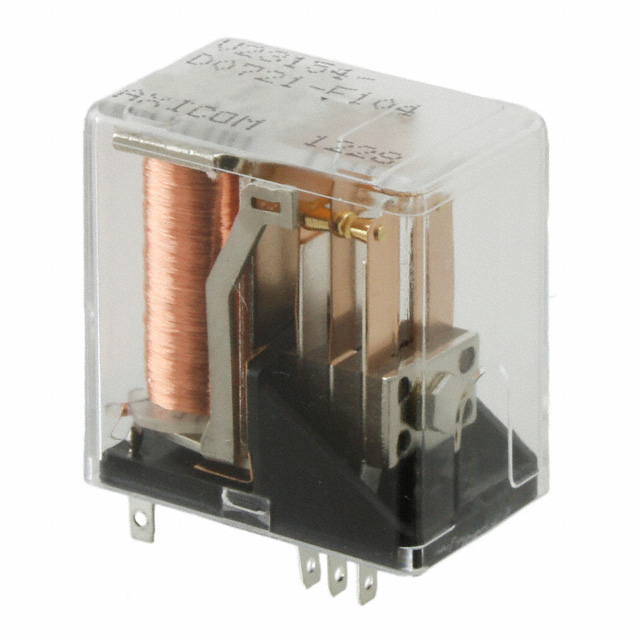

1393809-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1393809-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1393809-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1393809-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RELAY GEN PURPOSE DPDT 5A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 50 pcs | ||||
|---|---|---|---|---|---|
| $24.966 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1393809-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RELAY GEN PURPOSE DPDT 5A 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 1194 pcs | Data sheet | V23154/62 Cradle N Relay Datasheet |
| Category | Relays | Turn On Voltage (Max) | 11 VDC |
| Turn Off Voltage (Min) | - | Termination Style | Plug In |
| Switching Voltage | 125VAC, 150VDC - Max | Series | V23154, AXICOM |
| Release Time | 3ms | Relay Type | General Purpose |
| Packaging | Bulk | Other Names | 1393809-1-ND 13938091 PB1609 V23154D 721F104 V23154D 721F104-ND V23154D721F104 |
| Operating Temperature | -40°C ~ 70°C | Operate Time | 7.5ms |
| Mounting Type | Socketable | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 22 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Features | - | Detailed Description | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable |
| Contact Rating (Current) | 5A | Contact Material | Silver (Ag) |
| Contact Form | DPDT (2 Form C) | Coil Voltage | 24VDC |
| Coil Type | Non Latching | Coil Resistance | 890 Ohms |
| Coil Power | 647 mW | Coil Current | 27.0mA |
