1393586-6

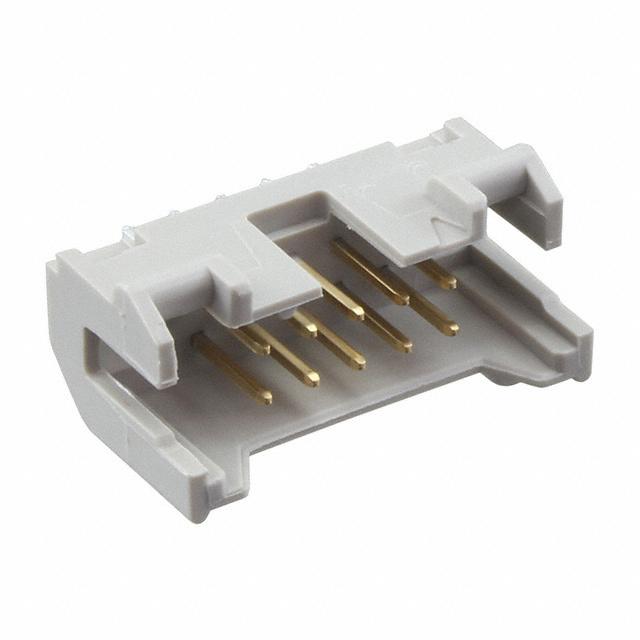

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1393586-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1393586-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1393586-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HEADER 421 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.404 | $2.305 | $1.904 | $1.603 | $1.403 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1393586-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HEADER 421 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 25399 pcs | Data sheet | 1393586 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | - |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1393586-6-ND A127950 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | - | Insulation Height | 0.496" (12.60mm) |
| Insulation Color | - | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | - |
| Detailed Description | Connector Header Through Hole 10 position 0.100" (2.54mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | - | Contact Length - Post | 0.114" (2.90mm) |
| Contact Length - Mating | 0.228" (5.80mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | - |
| Contact Finish - Mating | Gold-Palladium | Connector Type | Header |
| Applications | - |
