1375870-3

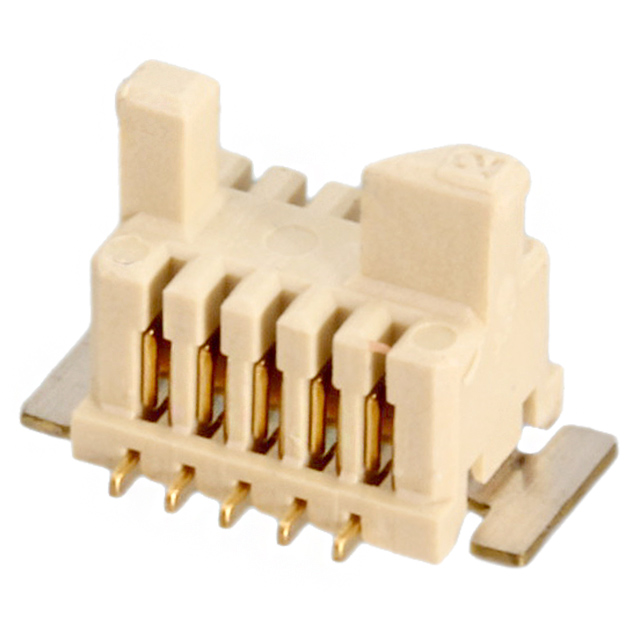

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1375870-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1375870-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1375870-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | RCPT ASSY,10 POS,VERT,0.8MM MI |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 750 pcs | 1500 pcs | |||
|---|---|---|---|---|---|
| $1.46 | $1.333 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1375870-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | RCPT ASSY,10 POS,VERT,0.8MM MI | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 28066 pcs | Data sheet | 1375870 |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | AMPMODU Micro | Row Spacing - Mating | - |
| Pitch - Mating | 0.031" (0.80mm) | Packaging | Tape & Reel (TR) |
| Other Names | A117838TR | Operating Temperature | -55°C ~ 85°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.197" (5.00mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Solder Retention |
| Fastening Type | Friction Lock | Detailed Description | 10 Position Receptacle Connector 0.031" (0.80mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Blade Socket |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Finish Thickness - Post | 5.11µin (0.130µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Gold |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
