1318853-2

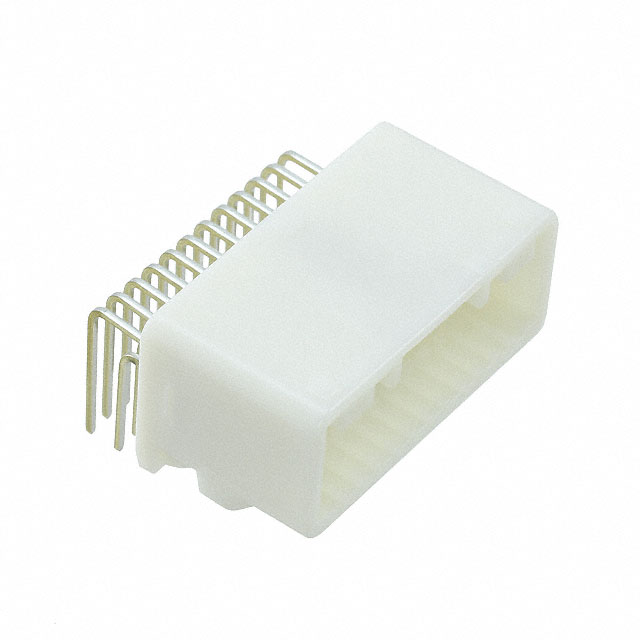

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1318853-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1318853-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1318853-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 24POS R/A PCB PIN SN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 14 pcs | 112 pcs | 504 pcs | 1008 pcs |
|---|---|---|---|---|---|
| $1.84 | $1.767 | $1.472 | $1.252 | $1.067 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1318853-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 24POS R/A PCB PIN SN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 30062 pcs | Data sheet | 1318853 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 12VDC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | 0.118" (3.00mm) | Pitch - Mating | 0.087" (2.20mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 1318853-2-ND A126095 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 24 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 HB |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 20 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.610" (15.49mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 24 position 0.087" (2.20mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | 0.217" (5.50mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | Automotive |
