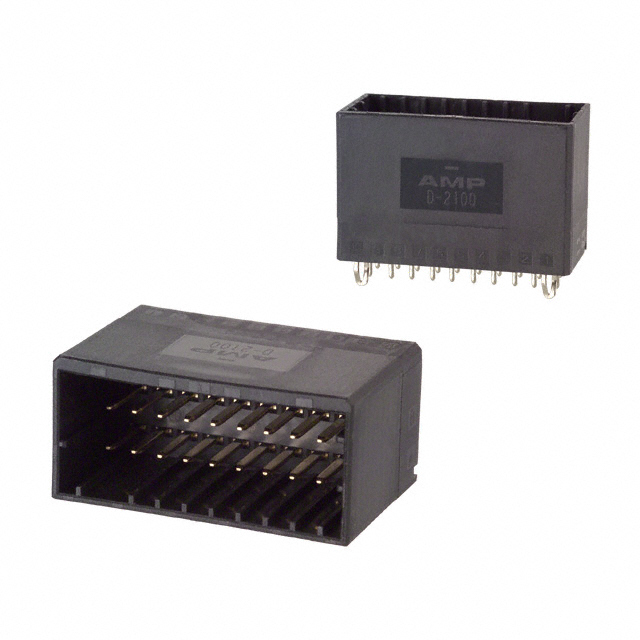

1318127-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1318127-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1318127-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1318127-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 20POS STR KEY-X 15AU |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.12 | $2.035 | $1.696 | $1.442 | $1.23 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1318127-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 20POS STR KEY-X 15AU | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 29842 pcs | Data sheet | 1318127 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-2100 |
| Row Spacing - Mating | 0.148" (3.75mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 13181271 A29813 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.700" (17.78mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 20 position 0.098" (2.50mm) |
| Current Rating | 5A | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
