1241209-1

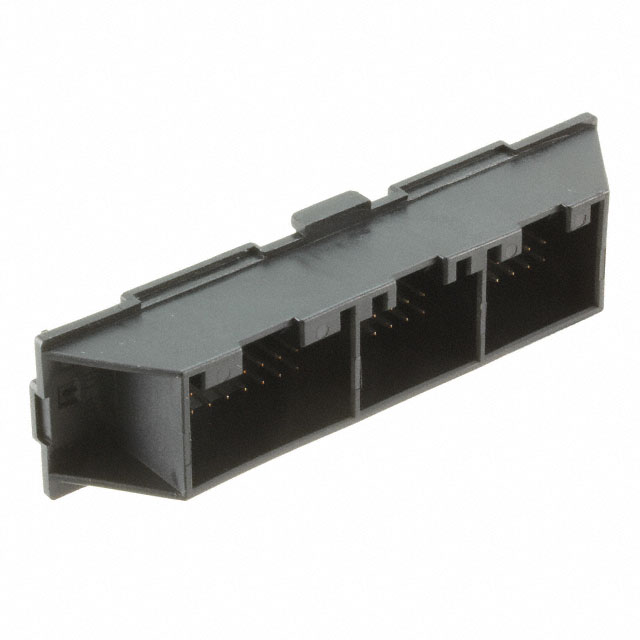

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1241209-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1241209-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1241209-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | MODU STLEI16+12+12P |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.567 | $2.459 | $2.031 | $1.711 | $1.497 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1241209-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | MODU STLEI16+12+12P | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20025 pcs | Data sheet | 1241209 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU Mod II |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1241209-1-ND A122719 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 40 (16 + 12 + 12) | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 7 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | - | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide, Board Lock |
| Fastening Type | Locking Ramp | Detailed Description | Connector Header Through Hole, Right Angle 40 (16 + 12 + 12) position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | 0.236" (6.00mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
