1059402-1

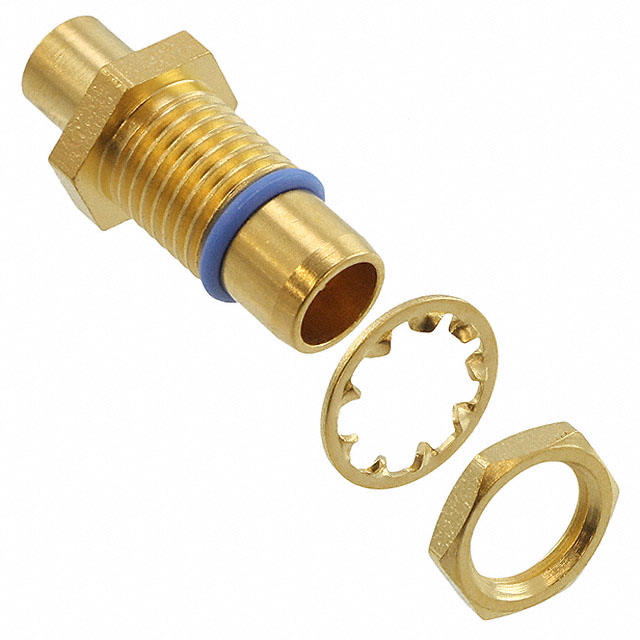

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1059402-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1059402-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1059402-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN MINI OSP PLUG STR 50 OHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $8.742 | $7.891 | $7.56 | $7.088 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $6.852 | $6.474 | $6.285 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1059402-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN MINI OSP PLUG STR 50 OHM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6029 pcs | Data sheet | 1059402-1 |
| Category | Connectors, Interconnects | Voltage Rating | 500V |
| Shield Termination | Solder | Series | Blindmate |
| Packaging | Bulk | Other Names | 10594021 |
| Operating Temperature | -65°C ~ 125°C | Number of Ports | 1 |
| Mounting Type | Panel Mount | Mounting Feature | Bulkhead - Front Side Nut |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | 5000 |
| Manufacturer Standard Lead Time | 17 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insertion Loss | - | Ingress Protection | - |
| Includes | 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut | Impedance | 50 Ohm |
| Housing Color | Gold | Frequency - Max | 22GHz |
| Features | - | Fastening Type | Snap-On |
| Dielectric Material | Polytetrafluoroethylene (PTFE) | Detailed Description | OSP, Mini Connector Plug, Male Pin 50 Ohm Panel Mount |
| Contact Termination | - | Connector Type | Plug, Male Pin |
| Connector Style | OSP, Mini | Center Contact Plating | Gold |
| Center Contact Material | Beryllium Copper | Cable Group | RG-402 (.141" Semi Rigid) |
| Body Material | Stainless Steel | Body Finish | Gold |
