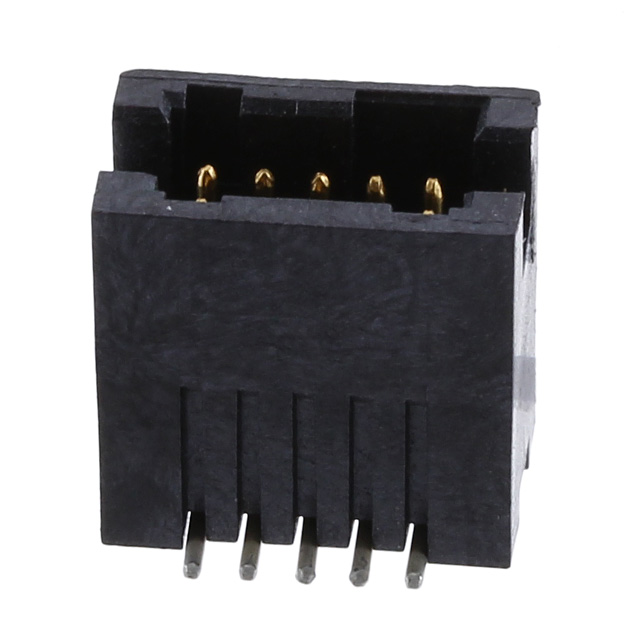

104693-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104693-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104693-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104693-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 10POS .050 VERT SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 56 pcs | 112 pcs | ||
|---|---|---|---|---|---|
| $1.268 | $1.065 | $1.015 | |||
| 504 pcs | 1008 pcs | 5040 pcs | |||
| $0.862 | $0.736 | $0.659 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 104693-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 10POS .050 VERT SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 49041 pcs | Data sheet | 104693 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU 50/50 Grid |
| Row Spacing - Mating | 0.050" (1.27mm) | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 104693-1-ND A114717 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | 9.91mm | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.367" (9.33mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | Connector Header Surface Mount 10 position 0.050" (1.27mm) |
| Current Rating | 0.5A per Contact | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | - | Contact Length - Mating | 0.120" (3.05mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Military, Telecommunications |
