104652-2

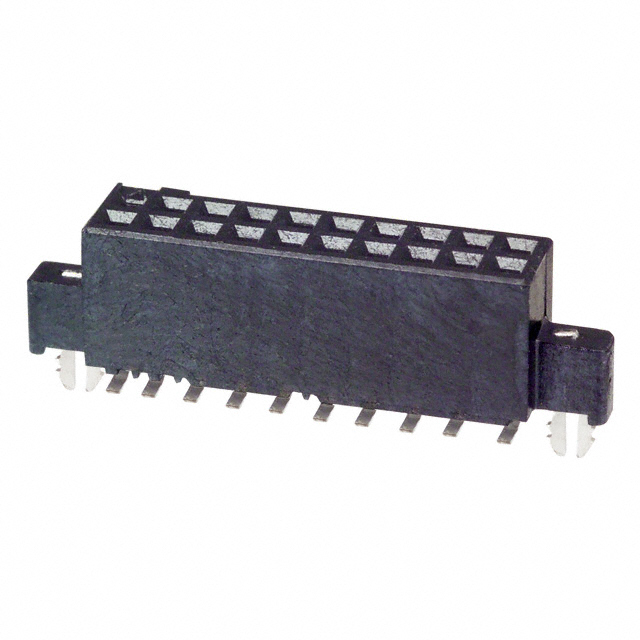

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104652-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104652-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104652-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 20POS .050 VERT SMD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 3751 pcs | ||||
|---|---|---|---|---|---|
| $0.842 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 104652-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 20POS .050 VERT SMD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 44023 pcs | Data sheet | 104652 |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Series | AMPMODU 50/50 Grid | Row Spacing - Mating | 0.050" (1.27mm) |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Other Names | A3103 | Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Surface Mount |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | 6.35mm, 8.13mm, 9.91mm | Manufacturer Standard Lead Time | 4 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Liquid Crystal Polymer (LCP) |
| Insulation Height | 0.187" (4.75mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Push-Pull | Detailed Description | 20 Position Receptacle Connector 0.050" (1.27mm) Surface Mount Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | - | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
