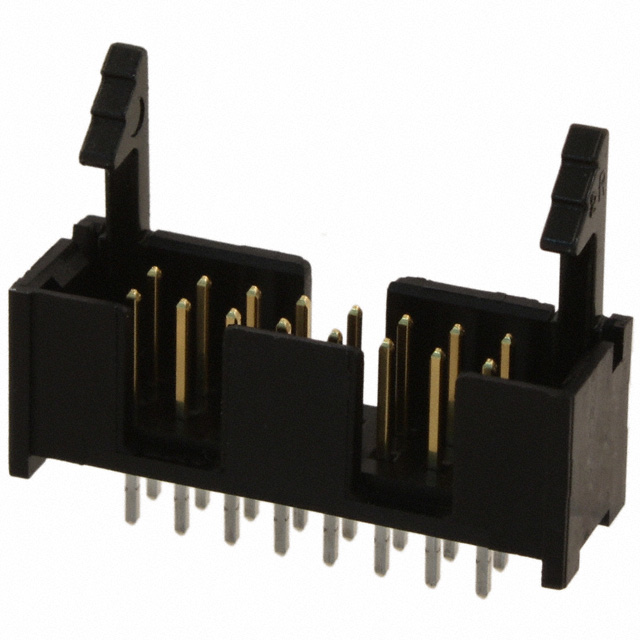

104313-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104313-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104313-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104313-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER LOPRO STR .100 16POS |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $1.978 | $1.899 | $1.582 | $1.345 | $1.147 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 104313-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER LOPRO STR .100 16POS | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 30747 pcs | Data sheet | 104313 |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | AMP-Latch |
| Row Spacing - Mating | 0.100" (2.54mm) | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 104313-3-ND 1043133 A26318 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Insulation Material | Polyamide (PA), Nylon, Glass Filled | Insulation Height | 0.385" (9.78mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Keying Slot | Fastening Type | Latch Lock/Eject Hooks, Short |
| Detailed Description | Connector Header Through Hole 16 position 0.100" (2.54mm) | Current Rating | 1A per Contact |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Brass | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | 0.240" (6.10mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold or Gold-Palladium | Connector Type | Header |
| Applications | - |
