104192-4

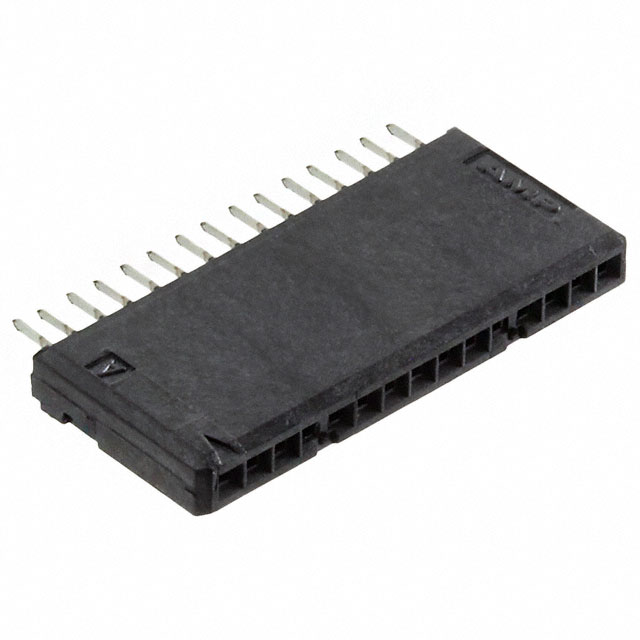

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104192-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104192-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104192-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 15 SYSTEM 50 RCPT ASSY SRST |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2522 pcs | ||||
|---|---|---|---|---|---|
| $0.716 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 104192-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 15 SYSTEM 50 RCPT ASSY SRST | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50165 pcs | Data sheet | 104192 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board |
| Series | AMPMODU System 50 | Row Spacing - Mating | - |
| Pitch - Mating | 0.050" (1.27mm) | Packaging | Tube |
| Operating Temperature | -65°C ~ 105°C | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | 11.43mm, 12.57mm |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Glass Filled |
| Insulation Height | 0.350" (8.89mm) | Insulation Color | Black |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 15 Position Receptacle Connector 0.050" (1.27mm) Through Hole Gold |
| Current Rating | 1A | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.100" (2.54mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin-Lead |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
