104074-6

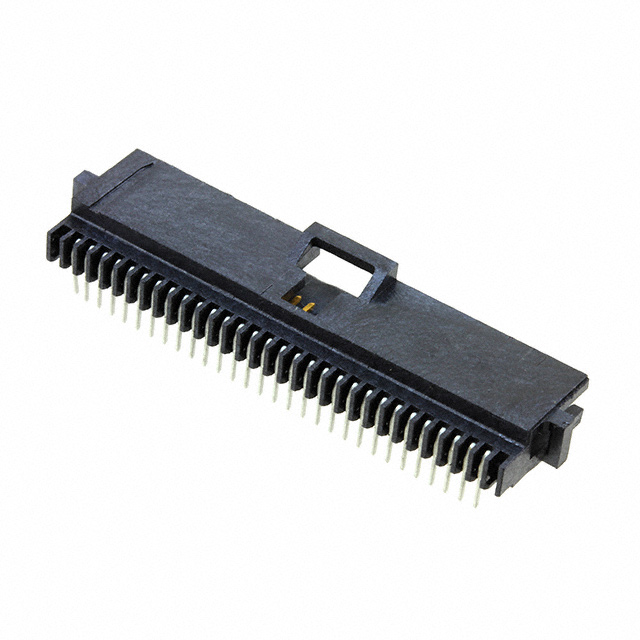

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 104074-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 104074-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 104074-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER 30POS.050 RTANG GOLD |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $3.026 | $2.894 | $2.433 | $2.039 | $1.802 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 104074-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER 30POS.050 RTANG GOLD | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 19817 pcs | Data sheet | 104074 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 30VAC |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 2 Wall | Series | AMPMODU System 50 |
| Row Spacing - Mating | - | Pitch - Mating | 0.050" (1.27mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 104074-6-ND A111694 |
Operating Temperature | -65°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 30 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 8 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.190" (4.83mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole, Right Angle 30 position 0.050" (1.27mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Circular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.100" (2.54mm) | Contact Length - Mating | 0.125" (3.18mm) |
| Contact Finish Thickness - Post | 150.0µin (3.81µm) | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
