103638-7

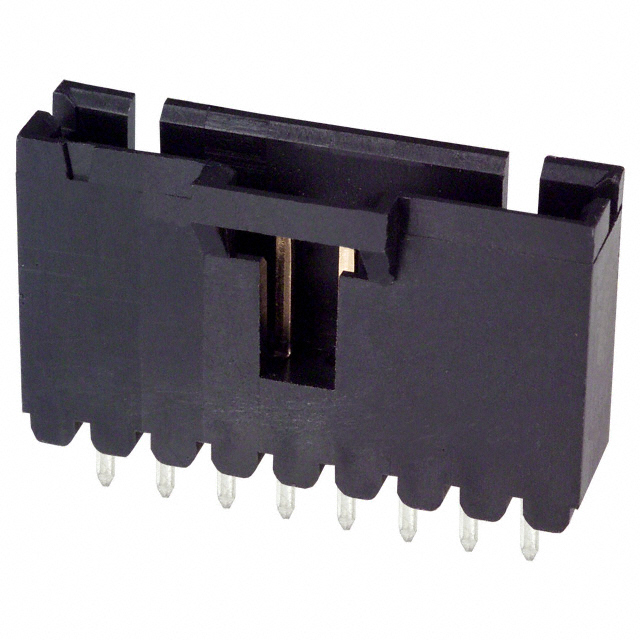

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 103638-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 103638-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 103638-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HEADER VERT .100 8POS 15AU |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 24 pcs | 120 pcs | 504 pcs | |
|---|---|---|---|---|---|
| $0.576 | $0.521 | $0.447 | $0.372 | ||
| 1008 pcs | 5016 pcs | 10008 pcs | |||
| $0.319 | $0.283 | $0.277 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 103638-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HEADER VERT .100 8POS 15AU | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 78973 pcs | Data sheet | 103638 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | AMPMODU MTE |
| Row Spacing - Mating | - | Pitch - Mating | 0.100" (2.54mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 103638-7-ND 1036387 A28542 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 15 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Thermoplastic |
| Insulation Height | 0.535" (13.60mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Keying Slot |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position 0.100" (2.54mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.130" (3.30mm) | Contact Length - Mating | 0.230" (5.84mm) |
| Contact Finish Thickness - Post | 100.0µin (2.54µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin-Lead | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | Automotive, General Purpose, Medical, Telecommunications |
