100161-1

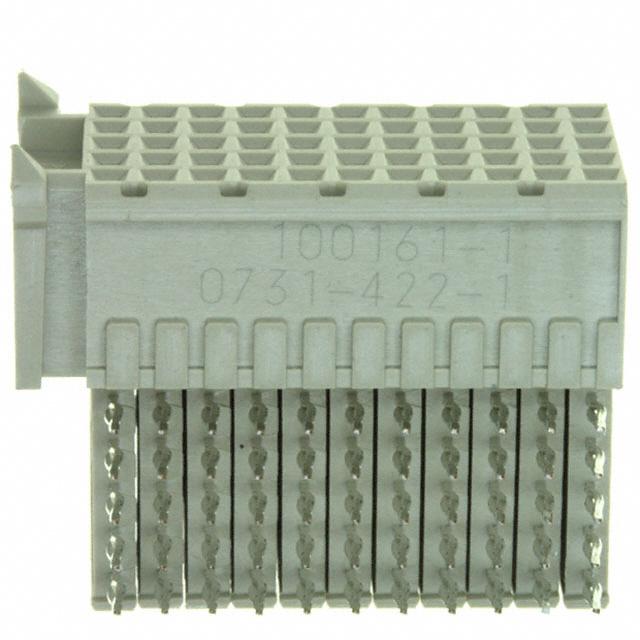

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 100161-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 100161-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 100161-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RECEPT 55POS RTANG GOLD 2MM |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | 1 pcs | 22 pcs | 44 pcs | 66 pcs | 110 pcs |
|---|---|---|---|---|---|
| $1.833 | $1.759 | $1.612 | $1.539 | $1.465 | |
| 264 pcs | 506 pcs | 1012 pcs | 2508 pcs | ||
| $1.282 | $1.246 | $1.062 | $0.989 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 100161-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RECEPT 55POS RTANG GOLD 2MM | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 38148 pcs | Data sheet | 100161 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 500Vrms |
| Termination | Press-Fit | Series | Z-PACK |
| Pitch | 0.079" (2.00mm) | Packaging | Tube |
| Other Names | 100161-1-ND A123190 |
Operating Temperature | -55°C ~ 125°C |
| Number of Rows | 5 | Number of Positions Loaded | All |
| Number of Positions | 55 | Mounting Type | Board Edge, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Features | - |
| Detailed Description | 55 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Board Edge, Through Hole, Right Angle | Current Rating | 1.5A |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Usage | - | Connector Type | Receptacle, Female Sockets |
| Connector Style | C 11 |
This browser does not support inline PDFs. Please download the PDF to view it: Download PDF
