1-963215-1

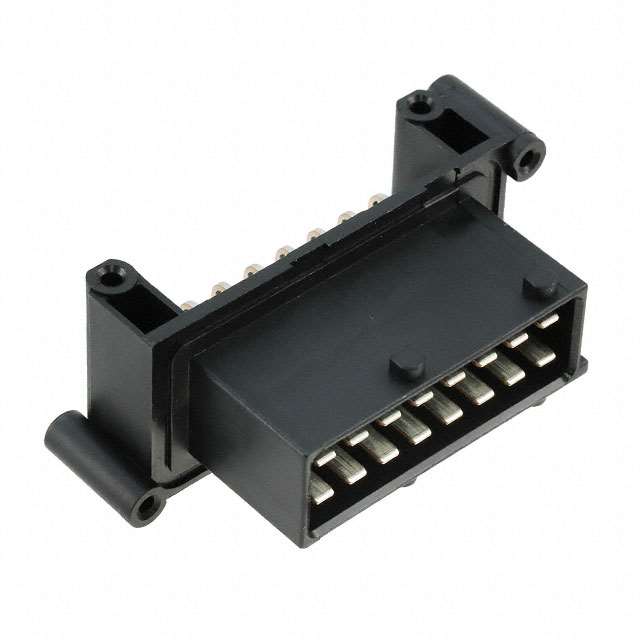

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-963215-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-963215-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-963215-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN TAB HEADER 16POS R/A TIN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 32 pcs | 128 pcs | 512 pcs | 1024 pcs |
|---|---|---|---|---|---|
| $4.322 | $3.831 | $3.34 | $2.849 | $2.613 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-963215-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN TAB HEADER 16POS R/A TIN | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12087 pcs | Data sheet | 963215 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Junior Power Timer |
| Row Spacing - Mating | 0.236" (6.00mm) | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | 1-963215-1-ND A123129 |
Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 16 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 1.055" (26.80mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Mounting Flange |
| Fastening Type | Lever Lock | Detailed Description | Connector Header Through Hole, Right Angle 16 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.122" (3.10mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Plug | Applications | Automotive, General Purpose |
