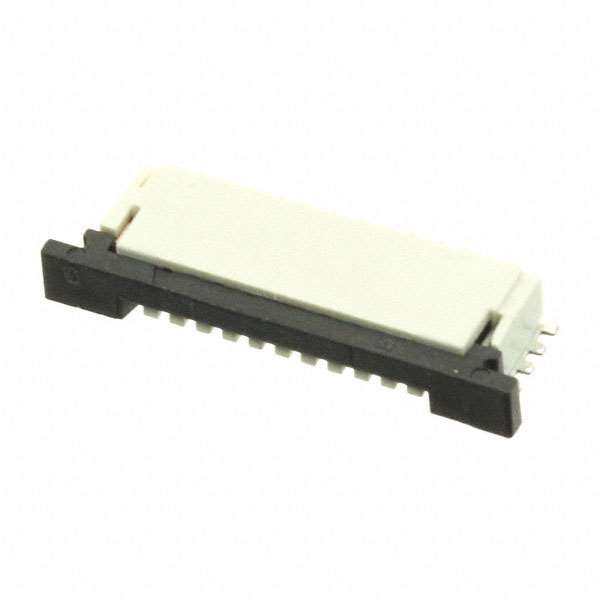

1-84952-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-84952-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-84952-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-84952-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FPC BOTTOM 10POS 1.00MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1500 pcs | 3000 pcs | 7500 pcs | 10500 pcs | 15000 pcs |
|---|---|---|---|---|---|
| $0.179 | $0.173 | $0.167 | $0.159 | $0.155 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-84952-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC BOTTOM 10POS 1.00MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 144170 pcs | Data sheet | 84952 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 200V |
| Termination | Solder | Series | - |
| Pitch | 0.039" (1.00mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1849520 A100250TR |
Operating Temperature | -40°C ~ 85°C |
| Number of Positions | 10 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 15 Weeks |
| Locking Feature | Slide Lock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Housing Color | Natural |
| Height Above Board | 0.101" (2.56mm) | Flat Flex Type | FPC |
| Features | Solder Retention, Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.30mm |
| Detailed Description | 10 Position FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle | Current Rating | 1A |
| Contact Material | Phosphor Bronze | Contact Finish Thickness | 78.7µin (2.00µm) |
| Contact Finish | Tin | Connector/Contact Type | Contacts, Bottom |
| Cable End Type | Straight | Actuator Material | Polyamide (PA), Nylon, Glass Filled |
| Actuator Color | Black |
