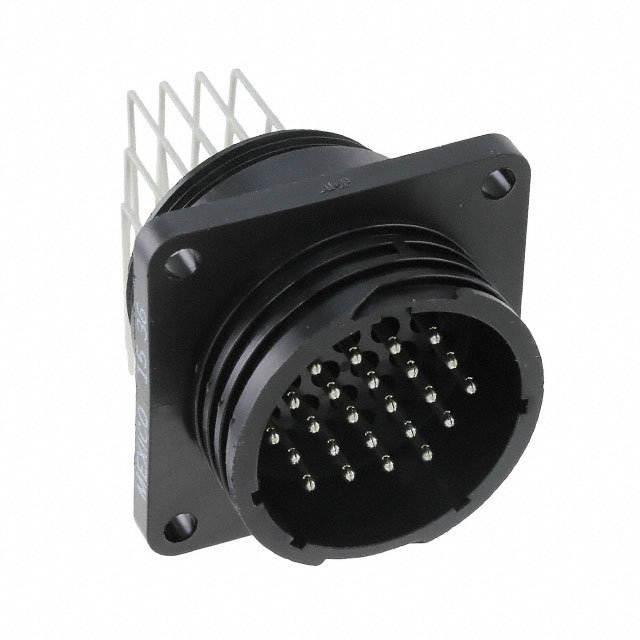

1-796387-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-796387-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-796387-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-796387-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT MALE 24POS TIN SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 16 pcs | 32 pcs | 56 pcs | 104 pcs |
|---|---|---|---|---|---|
| $19.045 | $17.924 | $17.364 | $16.244 | $15.348 | |
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-796387-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT MALE 24POS TIN SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2416 pcs | Data sheet | 796387 |
| Category | Connectors, Interconnects | Voltage Rating | 600VAC/DC |
| Termination | Solder | Shielding | - |
| Shell Size, MIL | - | Shell Size - Insert | 23-24 |
| Shell Material | Thermoplastic | Shell Finish | - |
| Series | CPC Series 1 | Packaging | Tray |
| Other Names | 1-796387-1-ND A123117 |
Orientation | A |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 24 |
| Mounting Type | Panel Mount, Through Hole, Right Angle | Mounting Feature | Flange |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Manufacturer Standard Lead Time | 5 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Features | - | Fastening Type | Threaded |
| Detailed Description | 24 Position Circular Connector Receptacle, Male Pins Solder Tin | Current Rating | 13A |
| Contact Finish Thickness - Mating | 100.0µin (2.54µm) | Contact Finish - Mating | Tin |
| Connector Type | Receptacle, Male Pins | Cable Opening | - |
| Backshell Material, Plating | - |
