1-747945-5

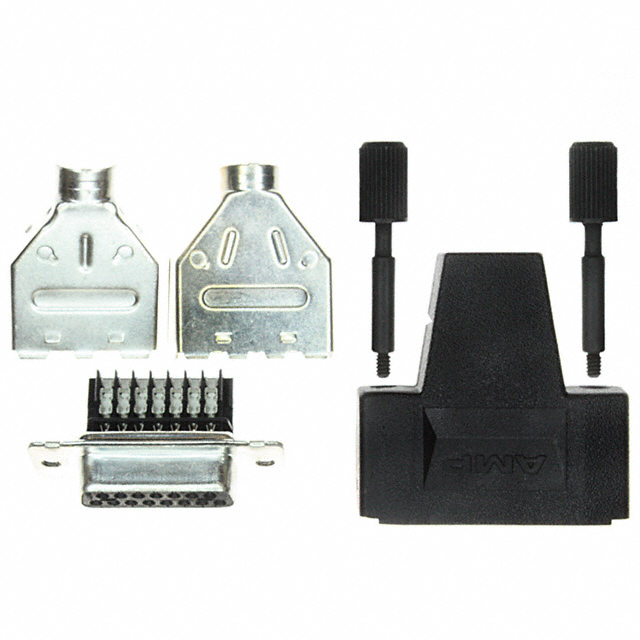

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-747945-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-747945-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-747945-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 15POS STR IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.419 | $4.926 | $4.803 | $4.434 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.187 | $3.818 | $3.571 | $3.276 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-747945-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS STR IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11709 pcs | Data sheet | 747945 Drawing |
| Category | Connectors, Interconnects | Wire Gauge | 26-30 AWG |
| Voltage Rating | 250V | Termination | IDC, Discrete Wire |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDE-20 | Packaging | Bulk |
| Other Names | 17479455 A31514 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | - | Flange Feature | Cable Side, Male Jackscrew (4-40) |
| Features | Backshell, Cover, Mounting Hardware, Shielded | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | Varies by Wire Gauge | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
