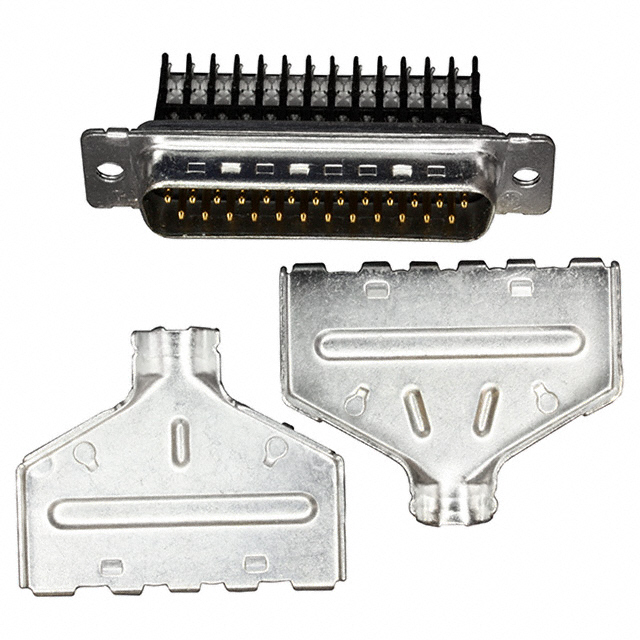

1-747547-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-747547-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-747547-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-747547-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 25POS STR IDC |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $5.805 | $5.278 | $5.146 | $4.75 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $4.486 | $4.09 | $3.826 | $3.51 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-747547-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 25POS STR IDC | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 11197 pcs | Data sheet | 747547 |
| Category | Connectors, Interconnects | Wire Gauge | 22-26 AWG |
| Voltage Rating | 250V | Termination | IDC, Discrete Wire |
| Shell Size, Connector Layout | 3 (DB, B) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HDE-20 | Packaging | Bulk |
| Other Names | 17475470 A31509 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 25 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 23 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Thermoplastic | Flange Feature | Housing/Shell (Unthreaded) |
| Features | Backshell, Grounding Indents, Shielded | Detailed Description | 25 Position D-Sub Plug, Male Pins Connector |
| Current Rating | Varies by Wire Gauge | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | Flash | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
