1-5747299-4

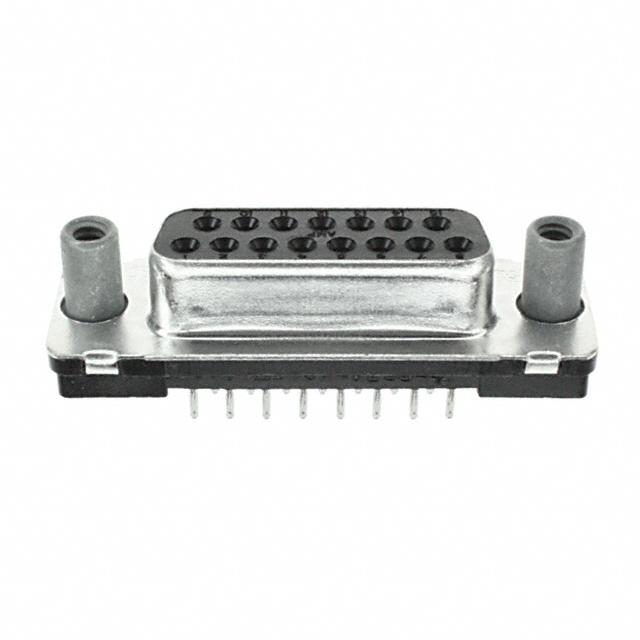

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5747299-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5747299-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5747299-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB RCPT 15POS VERT SLDR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 13 pcs | 26 pcs | 52 pcs | |
|---|---|---|---|---|---|
| $2.665 | $2.554 | $2.332 | $2.221 | ||
| 104 pcs | 260 pcs | 507 pcs | 1001 pcs | ||
| $2.11 | $1.888 | $1.777 | $1.555 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5747299-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB RCPT 15POS VERT SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 20934 pcs | Data sheet | 5747299 |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 2 (DA, A) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tube |
| Other Names | 157472994 A34093 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 15 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester | Flange Feature | Mating Side, Female Screwlock (4-40) |
| Features | - | Detailed Description | 15 Position D-Sub Receptacle, Female Sockets Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | Phosphor Bronze | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Sub |
| Color | Black | Backset Spacing | - |
