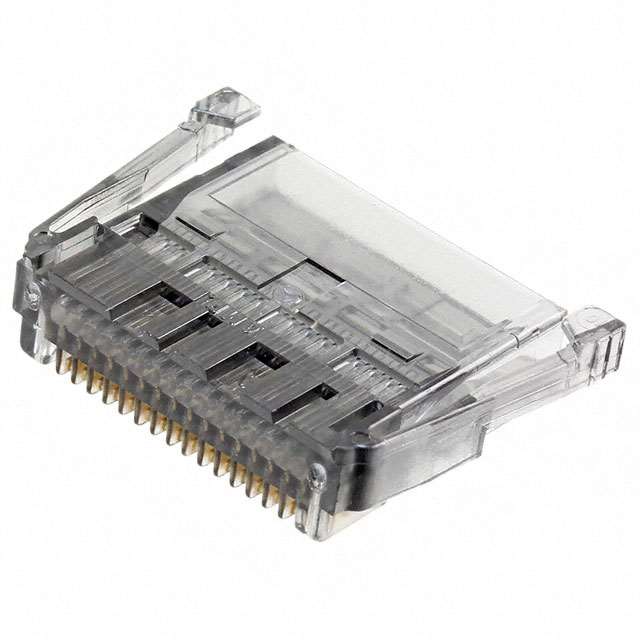

1-520424-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-520424-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-520424-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-520424-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN PLUG 16POS SDL 24-26AWG RND |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $2.739 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-520424-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN PLUG 16POS SDL 24-26AWG RND | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 13000 pcs | Data sheet | SDL Plugs, Receptacles Instr Sheet520424 |
| Category | Connectors, Interconnects | Wire Gauge | 24 AWG |
| Voltage Rating | 30V | Termination | Crimp |
| Shielding | Unshielded | Shield Material | - |
| Series | 50 | Ratings | - |
| Packaging | Bulk | Other Names | 1-520424-6-ND 4-26770-6170 A112314 |
| Number of Positions/Contacts | 16 Positions | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Manufacturer Standard Lead Time | 20 Weeks | Length | 0.855" (21.72mm) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polycarbonate (PC) | Features | Keyed |
| Detailed Description | SDL, Plug Modular Connector 16 Positions Position Unshielded Crimp | Current Rating | 1.5A |
| Contact Material | Copper Alloy | Contact Finish Thickness | 50.0µin (1.27µm) |
| Contact Finish | Gold | Connector Type | SDL, Plug |
| Color | Clear, Gray | Cable Type | Round Cable, Stranded Wires |
