1-5164711-0

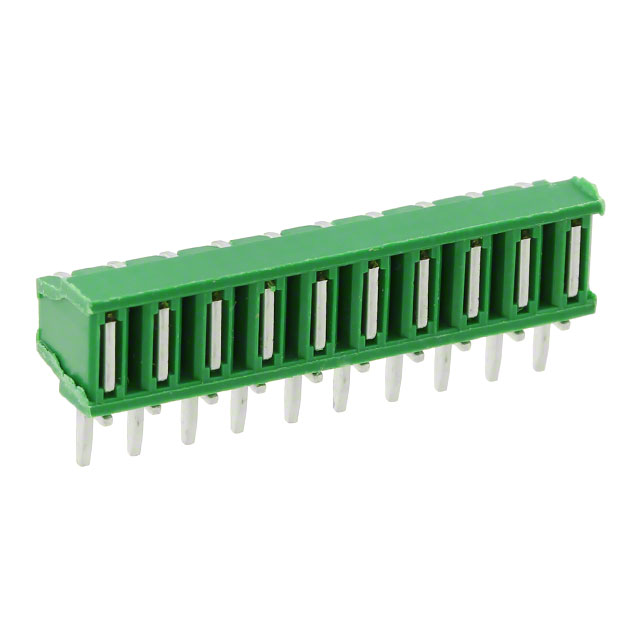

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5164711-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5164711-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5164711-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 10POS R/A 2.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.678 | $0.616 | $0.528 | $0.44 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.377 | $0.335 | $0.327 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5164711-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 10POS R/A 2.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 65698 pcs | Data sheet | 5164711 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board |
| Series | Mini-Match | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Other Names | 151647110 A36385 |
Operating Temperature | -40°C ~ 85°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Insulation Height | 0.240" (6.10mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Friction Lock | Detailed Description | 10 Position Receptacle Connector 0.098" (2.50mm) Through Hole, Right Angle Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.126" (3.20mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | - |
