1-5084108-2

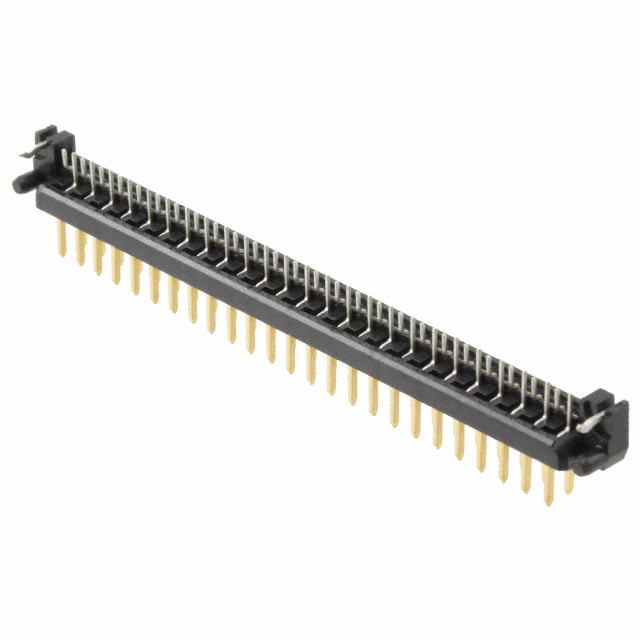

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-5084108-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-5084108-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-5084108-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | HDR ASSY 2MM AMPMODU SMT R/A D |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 2000 pcs | ||||
|---|---|---|---|---|---|
| $2.04 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-5084108-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | HDR ASSY 2MM AMPMODU SMT R/A D | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 15047 pcs | Data sheet | 5084108 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Unshrouded | Series | AMPMODU |
| Row Spacing - Mating | 0.079" (2.00mm) | Pitch - Mating | 0.079" (2.00mm) |
| Packaging | Tape & Reel (TR) | Overall Contact Length | - |
| Other Names | A117844TR | Operating Temperature | - |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 50 | Mounting Type | Board Edge, Cutout; Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyphenylene Sulfide (PPS) | Insulation Height | 0.079" (2.00mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Push-Pull |
| Detailed Description | Connector Header Board Edge, Cutout; Surface Mount, Right Angle 50 position 0.079" (2.00mm) | Current Rating | - |
| Contact Type | Male Pin | Contact Shape | Square |
| Contact Material | Copper Alloy | Contact Length - Post | - |
| Contact Length - Mating | 0.152" (3.86mm) | Contact Finish Thickness - Post | 100.0µin (2.54µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold or Gold-Palladium | Connector Type | Header |
| Applications | - |
