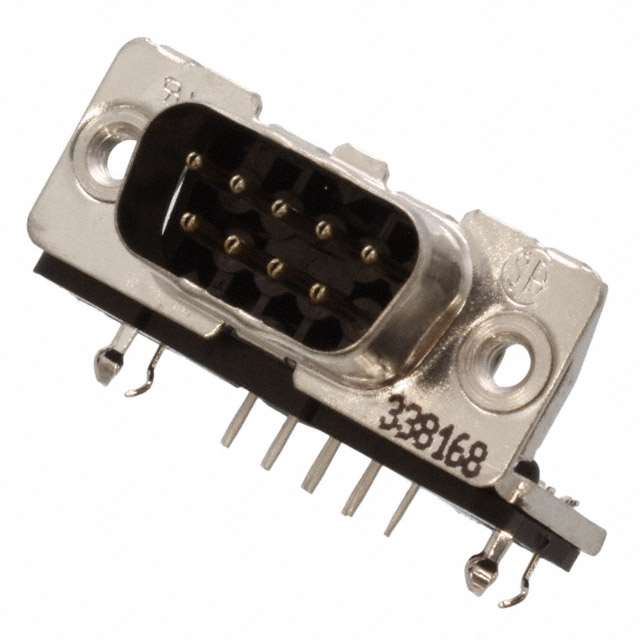

1-338168-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-338168-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-338168-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-338168-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN D-SUB PLUG 9POS R/A SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 55 pcs | |
|---|---|---|---|---|---|
| $1.464 | $1.404 | $1.287 | $1.229 | ||
| 110 pcs | 275 pcs | 550 pcs | 1045 pcs | ||
| $1.17 | $1.024 | $0.995 | $0.878 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-338168-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN D-SUB PLUG 9POS R/A SOLDER | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 34187 pcs | Data sheet | 338168 DrawingAMPLIMITE Catalog |
| Category | Connectors, Interconnects | Wire Gauge | - |
| Voltage Rating | 125V | Termination | Solder |
| Shell Size, Connector Layout | 1 (DE, E) | Shell Material, Finish | Steel, Tin Plated |
| Series | AMPLIMITE HD-20 | Packaging | Tray |
| Other Names | 1-338168-2-ND 13381682 A104913 |
Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions | 9 |
| Mounting Type | Through Hole, Right Angle | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 10 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Polyester, Glass Filled | Flange Feature | Housing/Shell (4-40) |
| Features | Board Lock, Grounding Indents | Detailed Description | 9 Position D-Sub Plug, Male Pins Connector |
| Current Rating | 6A | Contact Type | Signal |
| Contact Material | - | Contact Form | - |
| Contact Finish Thickness | - | Contact Finish | Gold |
| Connector Type | Plug, Male Pins | Connector Style | D-Sub |
| Color | Black | Backset Spacing | 0.406" (10.30mm) |
