Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-292207-5

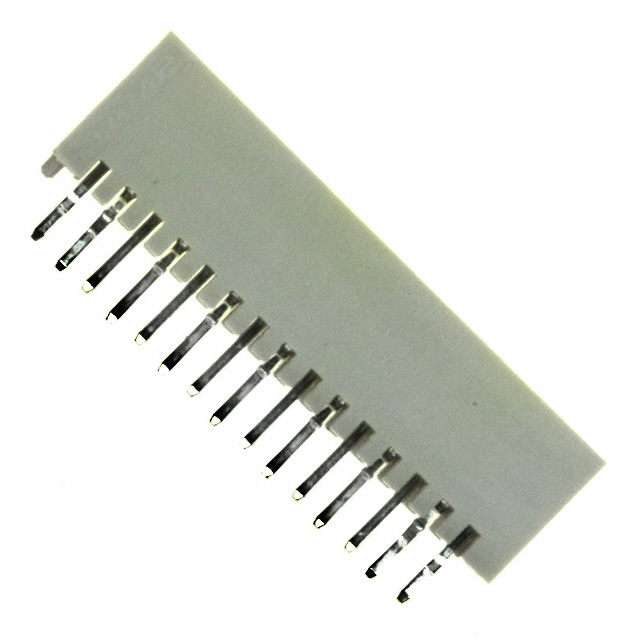

1-292207-5

1-292207-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-292207-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-292207-5
Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 15POS VERT 1.5MM TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 168797 pcs
Reference Price
(In US Dollars)		1 pcs10 pcs100 pcs600 pcs
$0.279$0.26$0.20$0.174
1200 pcs5400 pcs10200 pcs
$0.143$0.126$0.117

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.279

Product parameter

Part Number 1-292207-5 Manufacturer Agastat Relays / TE Connectivity
Description CONN HEADER 15POS VERT 1.5MM TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 168797 pcs Data sheet 292207
Category Connectors, Interconnects Voltage Rating 50VAC
Termination Kinked Pin, Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Mini CT
Row Spacing - Mating - Pitch - Mating 0.059" (1.50mm)
Packaging Bulk Overall Contact Length 0.307" (7.80mm)
Other Names A98694 Operating Temperature -30°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 15 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 12 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Polyamide (PA), Nylon, Glass Filled
Insulation Height 0.272" (6.91mm) Insulation Color Gray
Ingress Protection - Features Board Guide
Fastening Type Detent Lock Detailed Description Connector Header Through Hole 15 position 0.059" (1.50mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Square Contact Material Brass
Contact Length - Post 0.118" (3.00mm) Contact Length - Mating 0.094" (2.40mm)
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose
