1-282809-5

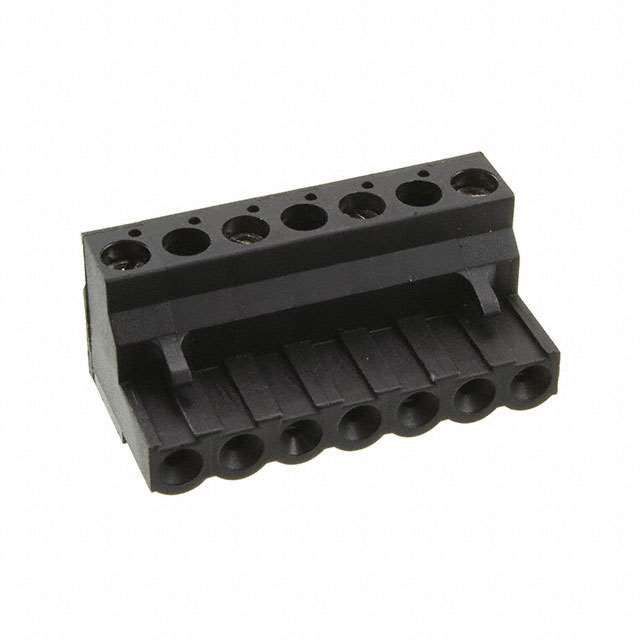

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-282809-5 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-282809-5 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-282809-5 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 4POS STR 10.16MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.71 | $1.304 | $1.221 | $1.085 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.062 | $0.979 | $0.885 | $0.785 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-282809-5 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 4POS STR 10.16MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 39170 pcs | Data sheet | 282809 |
| Category | Connectors, Interconnects | Wire Strip Length | 6-7.5mm |
| Wire Gauge or Range - mm² | 0.05-3mm² | Wire Gauge or Range - AWG | 12-30 AWG |
| Voltage - UL | 600V | Type | Plug, Female Sockets |
| Torque - Screw | 0.79 Nm (7.0 Lb-In) | Termination Style | Screw - Rising Cage Clamp |
| Series | Buchanan | Screw Size | M3 |
| Positions Per Level | 4 | Plug Wire Entry | 180° |
| Pitch | 0.400" (10.16mm) | Packaging | Bulk |
| Other Names | 1-282809-5-ND A112012 |
Operating Temperature | -40°C ~ 110°C |
| Number of Positions | 4 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 21 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.610" (15.49mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Positions Stamped, Retention Latches (Non-Wire Side) |
| Detailed Description | 4 Position Terminal Block Plug, Female Sockets 0.400" (10.16mm) 180° Free Hanging (In-Line) | Current - UL | 15A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Black |
