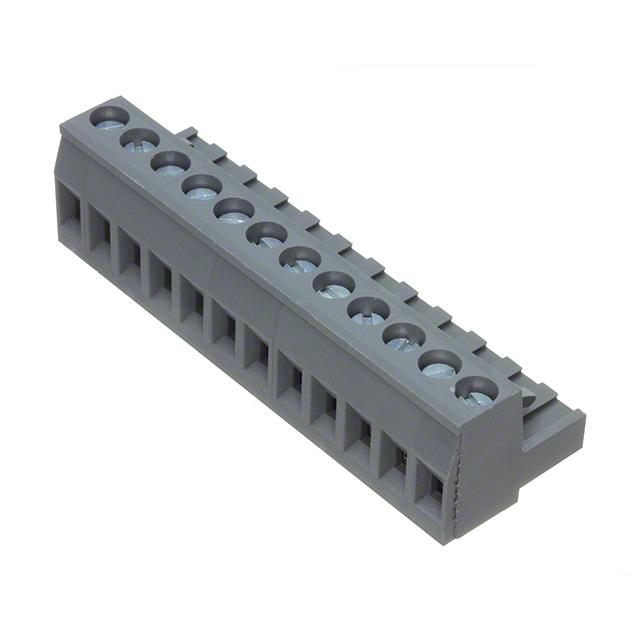

1-2305909-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2305909-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2305909-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2305909-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SMT TB PARALLEL PLUG, 5.0MM, 12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $2.905 | $2.29 | $2.179 | $1.978 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $1.899 | $1.676 | $1.564 | $1.452 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2305909-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SMT TB PARALLEL PLUG, 5.0MM, 12 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 26255 pcs | Data sheet | TB Series Datasheet2305909 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 7mm |
| Wire Gauge or Range - mm² | - | Wire Gauge or Range - AWG | 12-26 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.5 Nm (4.4 Lb-In) | Termination Style | Screw |
| Series | WireMate, Buchanan | Screw Size | - |
| Positions Per Level | 12 | Plug Wire Entry | 180° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | A126294 | Operating Temperature | - |
| Number of Positions | 12 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.591" (15.00mm) |
| Ingress Protection | - | Housing Material | Thermoplastic |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - UL | 10A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Nickel | Contact Material | Copper Alloy |
| Color | Black |
