Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-2299005-1

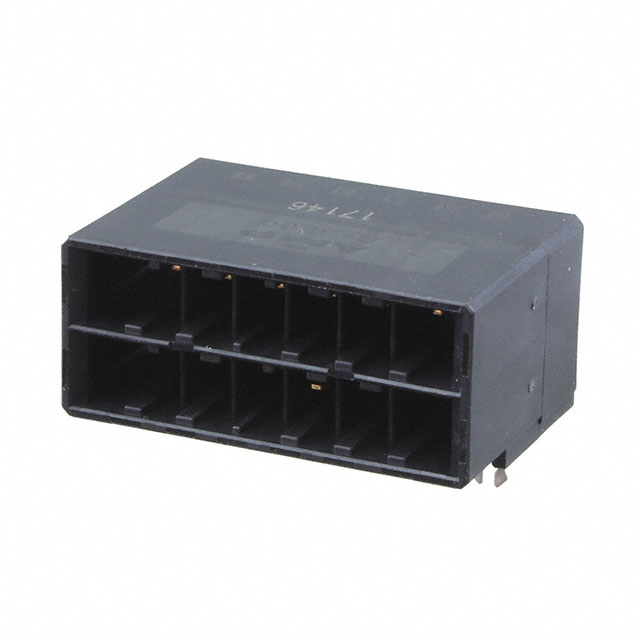

1-2299005-1

1-2299005-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2299005-1 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-2299005-1
Manufacturer Agastat Relays / TE Connectivity
Description DYNAMIC D3200M FMLB HDR ASSY 12P
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 26127 pcs
Reference Price
(In US Dollars)		1 pcs12 pcs108 pcs504 pcs1008 pcs
$2.429$2.328$1.924$1.62$1.417

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$2.429

Product parameter

Part Number 1-2299005-1 Manufacturer Agastat Relays / TE Connectivity
Description DYNAMIC D3200M FMLB HDR ASSY 12P Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 26127 pcs Data sheet 2299005 DrawingD-3000 Series Spec SheetDynamic 3200 Instruction Sheet
Category Connectors, Interconnects Voltage Rating 600V
Termination Solder Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall Series Dynamic D3200M
Row Spacing - Mating 0.300" (7.62mm) Pitch - Mating 0.200" (5.08mm)
Packaging Bulk Overall Contact Length -
Other Names A126882 Operating Temperature -55°C ~ 105°C
Number of Rows 2 Number of Positions Loaded All
Number of Positions 12 Mounting Type Through Hole, Right Angle
Moisture Sensitivity Level (MSL) Not Applicable Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 41 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Thermoplastic, Polyester
Insulation Height 0.727" (18.47mm) Insulation Color Black
Ingress Protection - Features Board Lock
Fastening Type - Detailed Description Connector Header Through Hole, Right Angle 12 position 0.200" (5.08mm)
Current Rating Varies by Wire Gauge Contact Type Male Pin
Contact Shape Rectangular Contact Material Copper Alloy
Contact Length - Post 0.134" (3.40mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 15.0µin (0.38µm)
Contact Finish - Post Tin Contact Finish - Mating Gold
Connector Type Header Applications Automotive, General Purpose, Industrial
