1-2232511-7

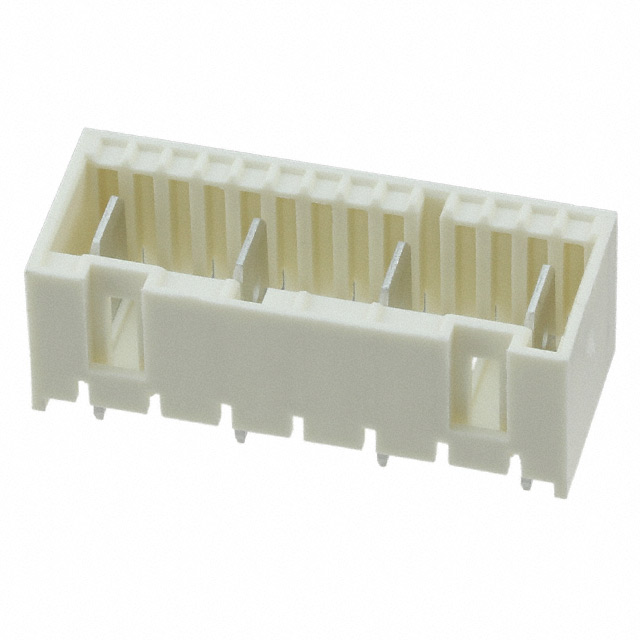

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2232511-7 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2232511-7 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2232511-7 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | 7P, RAST 5 TAB HEADER, THV |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.526 | $0.476 | $0.408 | $0.34 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.291 | $0.258 | $0.252 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2232511-7 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | 7P, RAST 5 TAB HEADER, THV | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86718 pcs | Data sheet | 2232511 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | - |
| Row Spacing - Mating | - | Pitch - Mating | 0.197" (5.00mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A126517 | Operating Temperature | -40°C ~ 120°C |
| Number of Rows | 1 | Number of Positions Loaded | 4 |
| Number of Positions | 7 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | Not Applicable | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 13 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.504" (12.80mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Board Guide, Glow Wire Compliant |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 7 position 0.197" (5.00mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | - |
| Contact Length - Post | 0.138" (3.50mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Silver | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | General Purpose |
