1-2229803-1

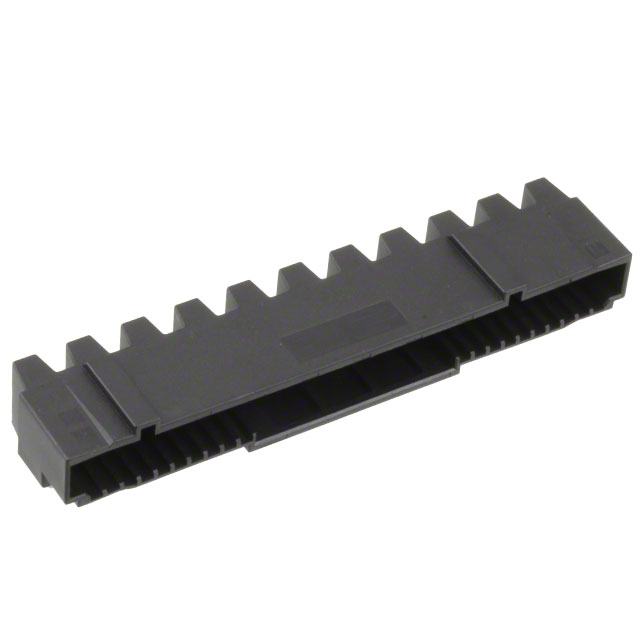

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2229803-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2229803-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2229803-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D3950 HDR ASSY 11P X |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5100 pcs | ||||
|---|---|---|---|---|---|
| $1.616 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2229803-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D3950 HDR ASSY 11P X | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 19174 pcs | Data sheet | 2229803 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3950 |
| Row Spacing - Mating | - | Pitch - Mating | 0.295" (7.50mm) |
| Packaging | Tray | Overall Contact Length | - |
| Other Names | A120362 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 6 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.472" (12.00mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 11 position 0.295" (7.50mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
