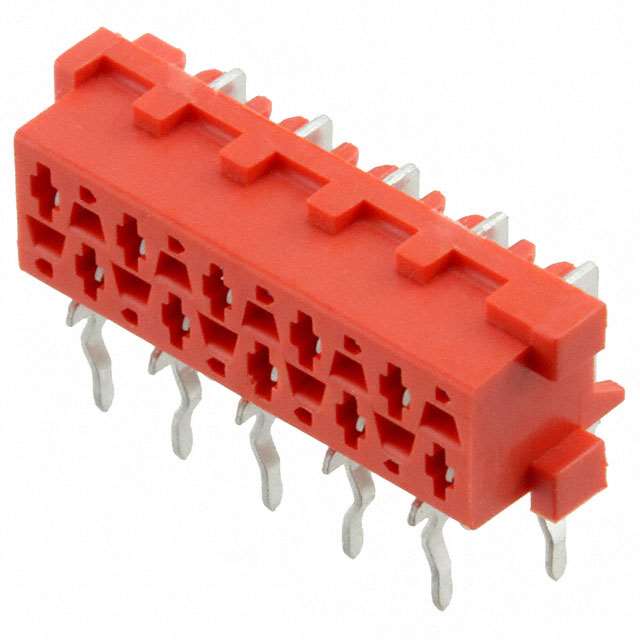

1-215460-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-215460-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-215460-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-215460-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FMALE-ON-BRD 10POS R/A T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10000 pcs | 20000 pcs | |||
|---|---|---|---|---|---|
| $0.151 | $0.147 | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-215460-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FMALE-ON-BRD 10POS R/A T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 161968 pcs | Data sheet | 215460 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 100VDC |
| Termination | Kinked Pin, Solder | Style | Board to Board or Cable |
| Series | Micro-MaTch | Row Spacing - Mating | 0.100" (2.54mm) |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tape & Reel (TR) |
| Other Names | 1-215460-0-ND A110877TR |
Operating Temperature | -40°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 10 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 28 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT), Polyester, Glass Filled |
| Insulation Height | 0.228" (5.80mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 10 Position Receptacle Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
| Current Rating | - | Contact Type | Forked |
| Contact Shape | - | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Receptacle |
| Applications | Automotive, General Purpose |
