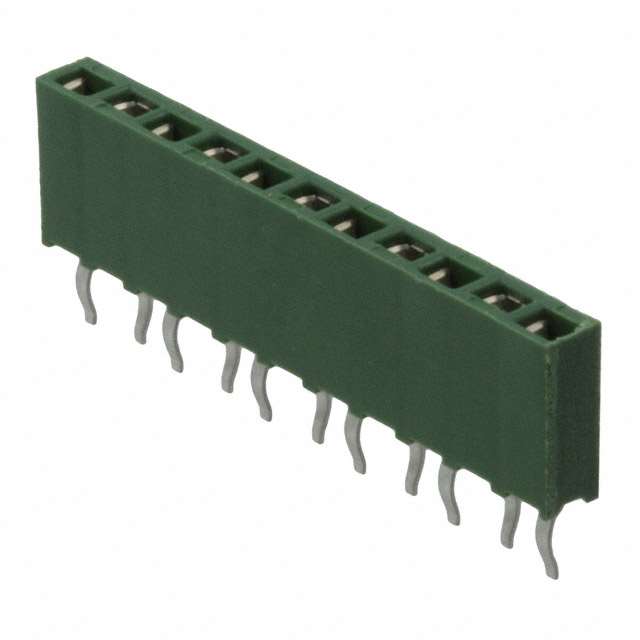

1-215297-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-215297-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-215297-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-215297-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 11POS .100 VERT T/H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.55 | $0.499 | $0.428 | $0.356 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.305 | $0.271 | $0.265 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-215297-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 11POS .100 VERT T/H | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 86915 pcs | Data sheet | 215297 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Kinked Pin, Solder | Style | Board to Board |
| Series | AMPMODU HV-100 | Row Spacing - Mating | - |
| Pitch - Mating | 0.100" (2.54mm) | Packaging | Tray |
| Other Names | 1-215297-1-ND 12152971 A106613 |
Operating Temperature | - |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 11 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 31 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyester, Glass Filled |
| Insulation Height | 0.276" (7.00mm) | Insulation Color | Green |
| Ingress Protection | - | Features | - |
| Fastening Type | Push-Pull | Detailed Description | 11 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold |
| Current Rating | - | Contact Type | Female Socket |
| Contact Shape | Square | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.122" (3.10mm) | Contact Finish Thickness - Post | 118.1µin (3.00µm) |
| Contact Finish Thickness - Mating | 31.5µin (0.80µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Receptacle |
| Applications | - |
