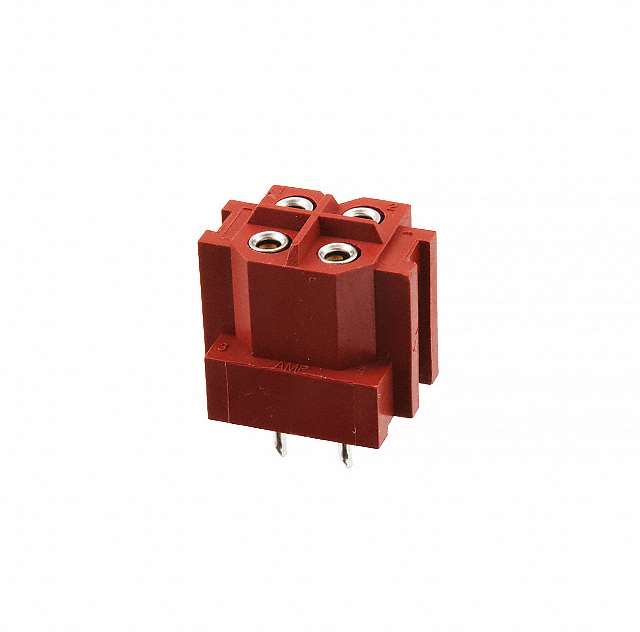

1-207496-0
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-207496-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-207496-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-207496-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SKT HDR ASSY,4P,MMATE LF |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a quote | ||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-207496-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SKT HDR ASSY,4P,MMATE LF | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4159 pcs | Data sheet | 207496 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 600V |
| Termination | Solder | Style | Board to Cable/Wire |
| Series | Metrimate | Row Spacing - Mating | 0.197" (5.00mm) |
| Pitch - Mating | 0.197" (5.00mm) | Packaging | Bulk |
| Operating Temperature | -55°C ~ 130°C | Number of Rows | 2 |
| Number of Positions Loaded | All | Number of Positions | 4 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA), Nylon |
| Insulation Height | 0.565" (14.35mm) | Insulation Color | Red |
| Ingress Protection | - | Features | - |
| Fastening Type | Latch Holder | Detailed Description | 4 Position Header Connector 0.197" (5.00mm) Through Hole Gold |
| Current Rating | 7.5A | Contact Type | Female Socket |
| Contact Shape | Circular | Contact Material | Phosphor Bronze |
| Contact Length - Post | 0.181" (4.60mm) | Contact Finish Thickness - Post | 150.0µin (3.81µm) |
| Contact Finish Thickness - Mating | 30.0µin (0.76µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | - |
