1-2013928-4

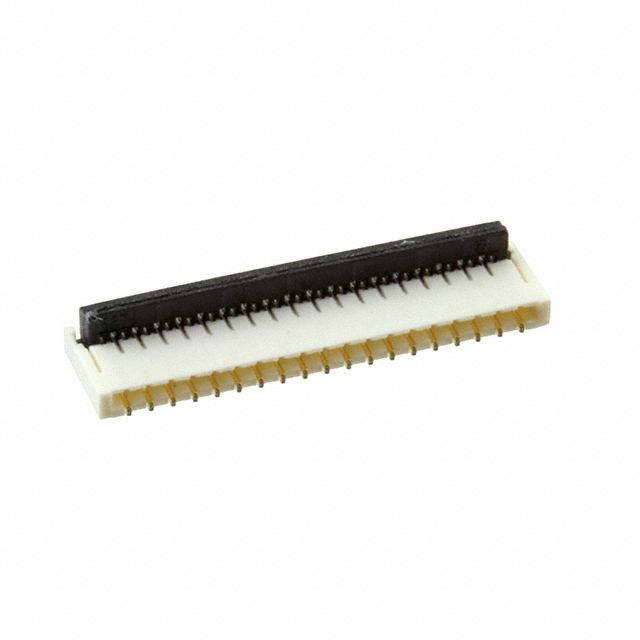

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2013928-4 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2013928-4 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2013928-4 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN FPC TOP 37POS 0.30MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $0.435 | $0.381 | $0.359 | $0.344 | ||
| 100 pcs | 250 pcs | 500 pcs | 1000 pcs | ||
| $0.329 | $0.299 | $0.269 | $0.239 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2013928-4 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN FPC TOP 37POS 0.30MM R/A | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 95149 pcs | Data sheet | 2013928 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Solder | Series | - |
| Pitch | 0.012" (0.30mm) | Packaging | Cut Tape (CT) |
| Other Names | 120139284 A100215CT |
Operating Temperature | -25°C ~ 85°C |
| Number of Positions | 37 | Mounting Type | Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Mating Cycles | - |
| Material Flammability Rating | - | Manufacturer Standard Lead Time | 31 Weeks |
| Locking Feature | Flip Lock, Backlock | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Housing Material | Thermoplastic | Housing Color | - |
| Height Above Board | 0.035" (0.88mm) | Flat Flex Type | FPC |
| Features | Zero Insertion Force (ZIF) | FFC, FCB Thickness | 0.20mm |
| Detailed Description | 37 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle | Current Rating | 0.2A |
| Contact Material | Copper Alloy | Contact Finish Thickness | - |
| Contact Finish | Gold | Connector/Contact Type | Contacts, Top |
| Cable End Type | Tapered | Actuator Material | Thermoplastic |
| Actuator Color | - |
