1-2013325-6

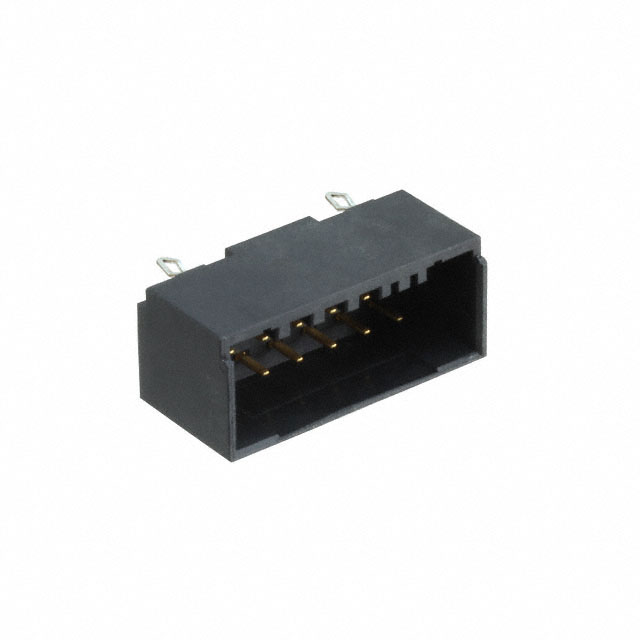

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-2013325-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-2013325-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-2013325-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC 1900D HDR ASSY V-TYPE 12 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | 102 pcs |
|---|---|---|---|---|---|
| $1.271 | $1.22 | $1.118 | $1.067 | $1.017 | |
| 255 pcs | 510 pcs | 1003 pcs | 2516 pcs | ||
| $0.889 | $0.864 | $0.737 | $0.686 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-2013325-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC 1900D HDR ASSY V-TYPE 12 | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 48237 pcs | Data sheet | 2013325 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 150V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-1900 |
| Row Spacing - Mating | 0.130" (3.30mm) | Pitch - Mating | 0.138" (3.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A125859 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled | Insulation Height | 0.490" (12.44mm) |
| Insulation Color | Black | Ingress Protection | - |
| Features | Board Lock | Fastening Type | Detent Lock |
| Detailed Description | Connector Header Through Hole 12 position 0.138" (3.50mm) | Current Rating | 4A |
| Contact Type | Tab | Contact Shape | Rectangular |
| Contact Material | Copper Alloy | Contact Length - Post | 0.120" (3.05mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | 78.7µin (2.00µm) |
| Contact Finish Thickness - Mating | 15.0µin (0.38µm) | Contact Finish - Post | Tin |
| Contact Finish - Mating | Gold | Connector Type | Header |
| Applications | General Purpose, Industrial |
