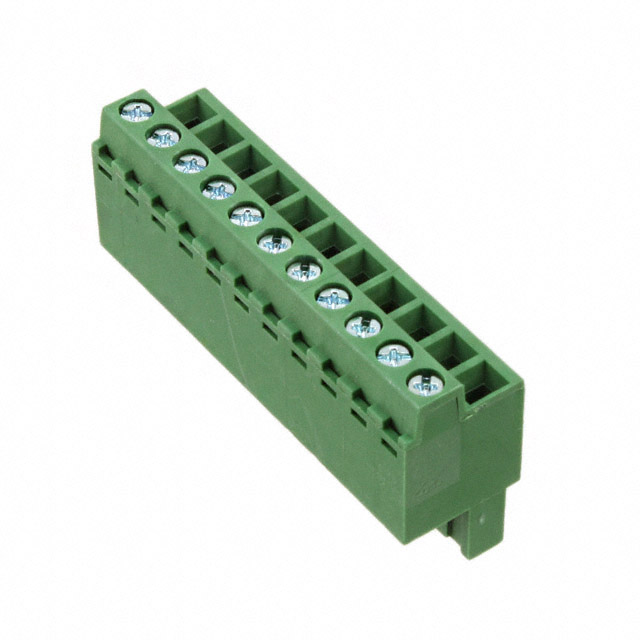

1-1986300-1
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1986300-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1986300-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1986300-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK PLUG 11POS STR 5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 296 pcs | ||||
|---|---|---|---|---|---|
| $2.874 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1986300-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK PLUG 11POS STR 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 12784 pcs | Data sheet | 1986300 Drawing |
| Category | Connectors, Interconnects | Wire Strip Length | 10mm |
| Wire Gauge or Range - mm² | 0.2-2mm² | Wire Gauge or Range - AWG | 14-24 AWG |
| Voltage - UL | 300V | Type | Plug, Female Sockets |
| Torque - Screw | 0.51 Nm (4.5 Lb-In) | Termination Style | Screw - Pressure Clip |
| Series | - | Screw Size | - |
| Positions Per Level | 11 | Plug Wire Entry | 180° |
| Pitch | 0.197" (5.00mm) | Packaging | Bulk |
| Other Names | 119863001 A101144 |
Operating Temperature | -40°C ~ 105°C |
| Number of Positions | 11 | Number of Levels | 1 |
| Mounting Type | Free Hanging (In-Line) | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Manufacturer Standard Lead Time | 17 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Height | 0.587" (14.91mm) |
| Ingress Protection | - | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Header Orientation | - | Features | Retention Latches (Non-Wire Side) |
| Detailed Description | 11 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line) | Current - UL | 16A |
| Current - IEC | - | Contact Tail Length | - |
| Contact Mating Finish | Tin | Contact Material | Phosphor Bronze |
| Color | Green |
