1-1981458-6

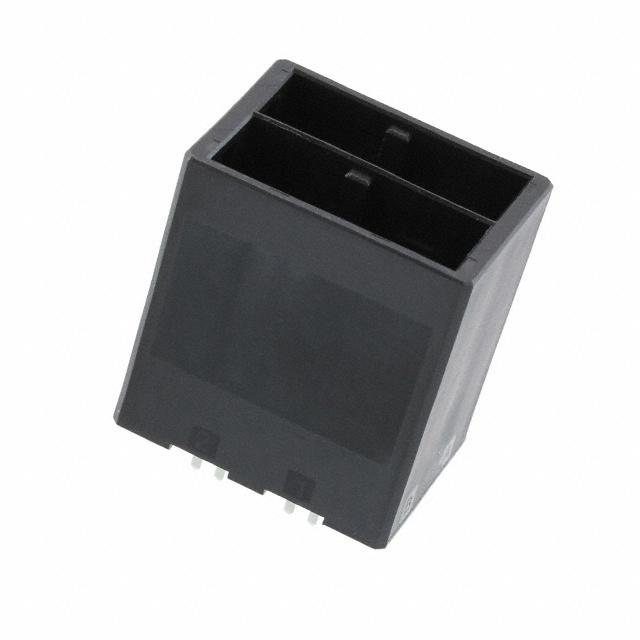

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1981458-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1981458-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1981458-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC D-5 V-HDR ASSY 4P AG XX |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 15 pcs | 30 pcs | 60 pcs | |
|---|---|---|---|---|---|
| $8.662 | $7.82 | $7.492 | $7.024 | ||
| 105 pcs | 255 pcs | 510 pcs | |||
| $6.79 | $6.415 | $6.228 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1981458-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC D-5 V-HDR ASSY 4P AG XX | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 5137 pcs | Data sheet | 1981458 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 630V |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-5200 |
| Row Spacing - Mating | 0.400" (10.16mm) | Pitch - Mating | 0.400" (10.16mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A118574 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 4 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 25 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 1.156" (29.36mm) | Insulation Color | Black |
| Ingress Protection | IP20 | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 4 position 0.400" (10.16mm) |
| Current Rating | 30A | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 100.0µin (2.54µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Silver |
| Connector Type | Header | Applications | General Purpose, Industrial |
