1-1969570-2

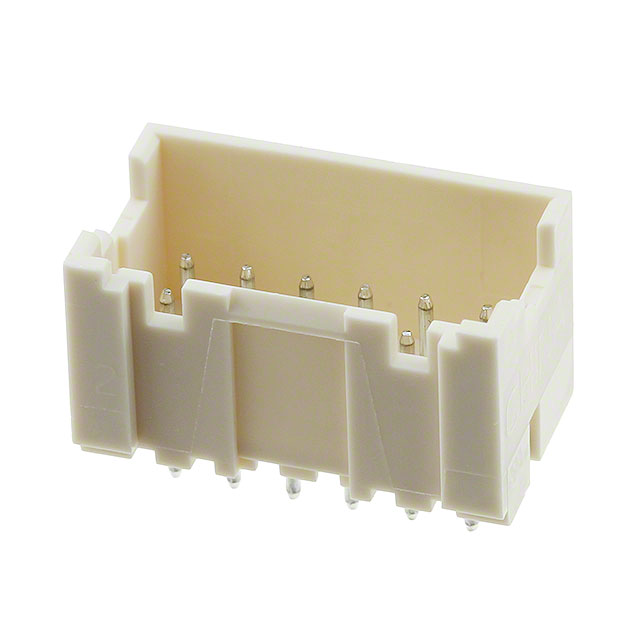

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1969570-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1969570-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1969570-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR PLUG |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.335 | $0.295 | $0.255 | $0.208 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.185 | $0.162 | $0.154 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1969570-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR PLUG | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 133086 pcs | Data sheet | 1969570 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250VAC |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Economy Power 2.5 |
| Row Spacing - Mating | 0.098" (2.50mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A119086 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 12 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Material | Polyamide (PA), Nylon | Insulation Height | 0.386" (9.80mm) |
| Insulation Color | White | Ingress Protection | - |
| Features | Board Guide, Glow Wire Compliant | Fastening Type | Friction Lock |
| Detailed Description | Connector Header Through Hole 12 position 0.098" (2.50mm) | Current Rating | 4.2A |
| Contact Type | Male Pin | Contact Shape | Circular |
| Contact Material | Brass | Contact Length - Post | 0.134" (3.40mm) |
| Contact Length - Mating | - | Contact Finish Thickness - Post | - |
| Contact Finish Thickness - Mating | - | Contact Finish - Post | Tin |
| Contact Finish - Mating | Tin | Connector Type | Header |
| Applications | General Purpose, Industrial, Lighting |
