1-1827875-0

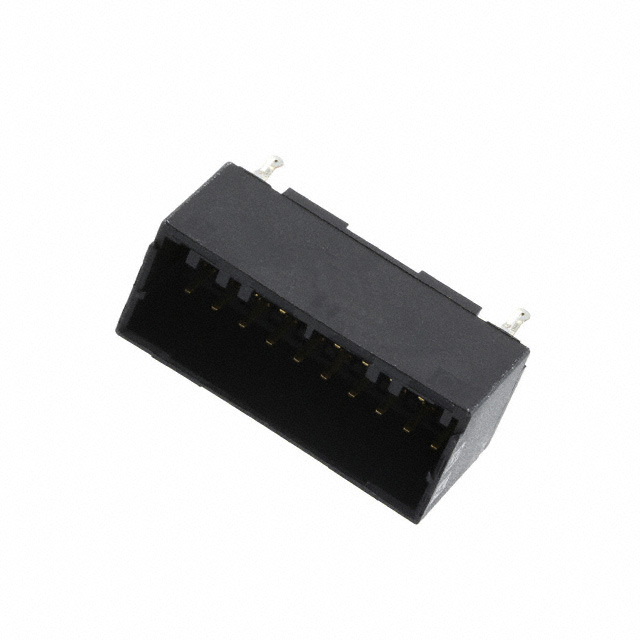

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1827875-0 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1827875-0 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1827875-0 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | DYNAMIC 1200D HDR ASSY V 20PXBLA |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 17 pcs | 34 pcs | 51 pcs | 102 pcs |
|---|---|---|---|---|---|
| $1.411 | $1.356 | $1.243 | $1.186 | $1.13 | |
| 255 pcs | 510 pcs | 1003 pcs | 2516 pcs | ||
| $0.989 | $0.96 | $0.819 | $0.763 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1827875-0 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | DYNAMIC 1200D HDR ASSY V 20PXBLA | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 50711 pcs | Data sheet | 1827875 DrawingD-1000 Series |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-1200 |
| Row Spacing - Mating | 0.130" (3.30mm) | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | A118532 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 20 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 18 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.490" (12.44mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole 20 position 0.098" (2.50mm) |
| Current Rating | 5A | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Copper Alloy |
| Contact Length - Post | 0.120" (3.05mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | 78.7µin (2.00µm) | Contact Finish Thickness - Mating | 15.0µin (0.38µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
