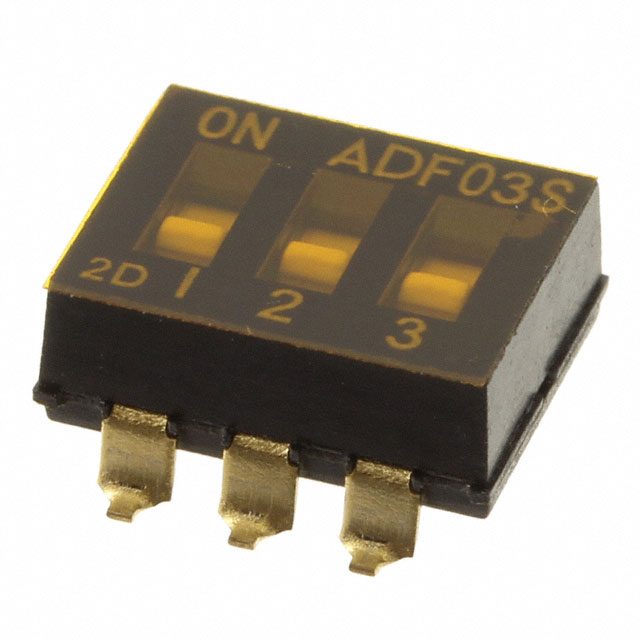

1-1825059-2
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1825059-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1825059-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1825059-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | SWITCH SLIDE DIP SPST 100MA 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $0.696 | $0.676 | $0.641 | |||
| 50 pcs | 100 pcs | 250 pcs | |||
| $0.599 | $0.585 | $0.502 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1825059-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | SWITCH SLIDE DIP SPST 100MA 24V | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 61552 pcs | Data sheet | 1825059 Drawing |
| Category | Switches | Washable | Yes |
| Voltage Rating | 24VDC | Termination Style | Gull Wing |
| Series | ADF | Pitch | 0.100" (2.54mm), Full |
| Packaging | Cut Tape (CT) | Other Names | 450-1790-1 |
| Operating Temperature | -30°C ~ 85°C | Number of Positions | 3 |
| Mounting Type | Surface Mount | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mechanical Life | 1,000 Cycles | Manufacturer Standard Lead Time | 4 Weeks |
| Length | 0.378" (9.60mm) | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Height Above Board | 0.177" (4.50mm) | Features | Tape Seal |
| Electrical Life | 1,000 Cycles | Detailed Description | Dip Switch SPST 3 Position Surface Mount Slide (Standard) Actuator 100mA 24VDC |
| Current Rating | 100mA | Contact Material | Copper Alloy |
| Contact Finish | Gold | Circuit | SPST |
| Body Material | Polyphenylene Sulfide (PPS) | Actuator Type | Slide (Standard) |
| Actuator Level | Flush, Recessed |
