Home > Products > Connectors, Interconnects > Rectangular Connectors - Headers, Male Pins > 1-178316-5

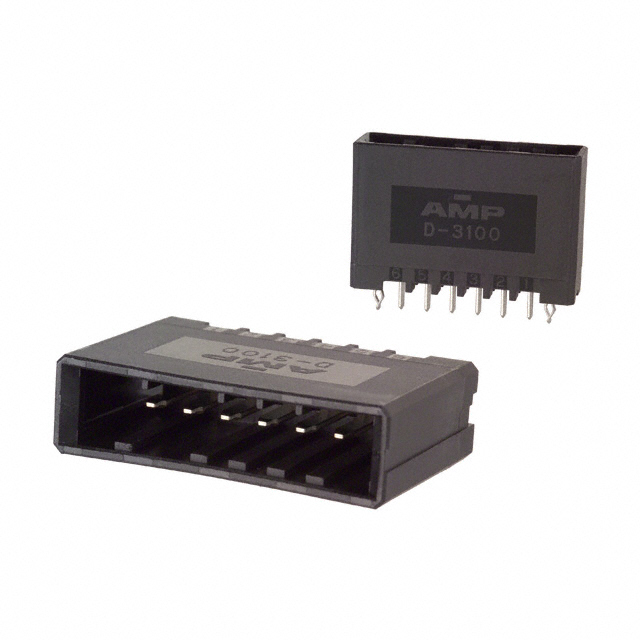

1-178316-5

1-178316-5
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-178316-5 with confidence from Components-World.HK, 1 Year Warranty

Request a Quote

Part Number 1-178316-5
Manufacturer Agastat Relays / TE Connectivity
Description CONN HDR 6POS VERT KEY-X TIN
Lead Free Status / RoHS Status Lead free / RoHS Compliant
In Stock 64818 pcs
Reference Price
(In US Dollars)		6600 pcs
$0.306

Submit a Request For Quotation on quantities greater than those displayed.

Target Price:(USD)
Quantity:
Total:
$0.306

Product parameter

Part Number 1-178316-5 Manufacturer Agastat Relays / TE Connectivity
Description CONN HDR 6POS VERT KEY-X TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 64818 pcs Data sheet 178316 Drawing
Category Connectors, Interconnects Voltage Rating 250V
Termination Solder Style Board to Board or Cable
Shrouding Shrouded - 4 Wall Series Dynamic D-3100
Row Spacing - Mating - Pitch - Mating 0.150" (3.81mm)
Packaging Bulk Overall Contact Length -
Other Names A29499 Operating Temperature -55°C ~ 105°C
Number of Rows 1 Number of Positions Loaded All
Number of Positions 6 Mounting Type Through Hole
Moisture Sensitivity Level (MSL) 1 (Unlimited) Material Flammability Rating UL94 V-0
Mated Stacking Heights - Manufacturer Standard Lead Time 14 Weeks
Lead Free Status / RoHS Status Lead free / RoHS Compliant Insulation Material Thermoplastic, Polyester, Glass Filled
Insulation Height 0.850" (21.59mm) Insulation Color Black
Ingress Protection - Features Board Lock
Fastening Type Detent Lock Detailed Description Connector Header Through Hole 6 position 0.150" (3.81mm)
Current Rating - Contact Type Tab
Contact Shape Rectangular Contact Material Copper Alloy
Contact Length - Post 0.150" (3.81mm) Contact Length - Mating -
Contact Finish Thickness - Post - Contact Finish Thickness - Mating 78.7µin (2.00µm)
Contact Finish - Post Tin Contact Finish - Mating Tin
Connector Type Header Applications General Purpose, Industrial
