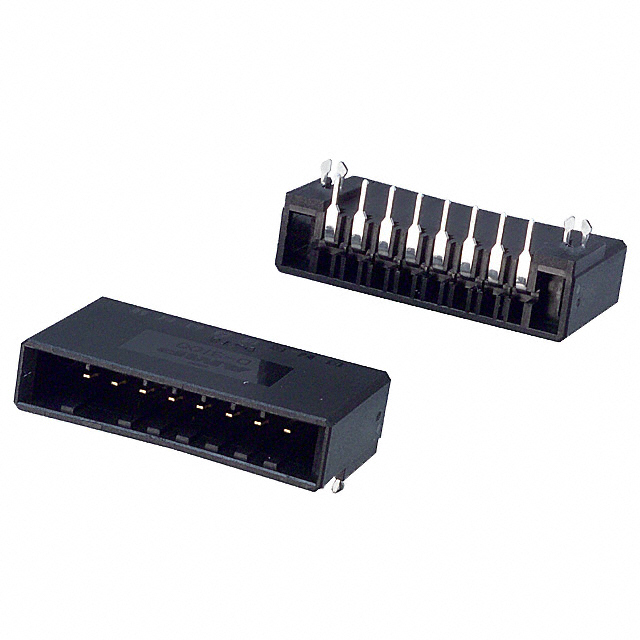

1-178297-3
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-178297-3 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-178297-3 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-178297-3 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN HDR 8POS R/A KEY-X 30GOLD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4800 pcs | ||||
|---|---|---|---|---|---|
| $0.813 | |||||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-178297-3 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN HDR 8POS R/A KEY-X 30GOLD | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 43452 pcs | Data sheet | 178297 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | 250V |
| Termination | Solder | Style | Board to Board or Cable |
| Shrouding | Shrouded - 4 Wall | Series | Dynamic D-3100 |
| Row Spacing - Mating | - | Pitch - Mating | 0.150" (3.81mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A29459 | Operating Temperature | -55°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 12 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Thermoplastic, Polyester, Glass Filled |
| Insulation Height | 0.368" (9.35mm) | Insulation Color | Black |
| Ingress Protection | - | Features | Board Lock |
| Fastening Type | Detent Lock | Detailed Description | Connector Header Through Hole, Right Angle 8 position 0.150" (3.81mm) |
| Current Rating | - | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Copper Alloy |
| Contact Length - Post | 0.150" (3.81mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | 30.0µin (0.76µm) |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
