1-1776275-2

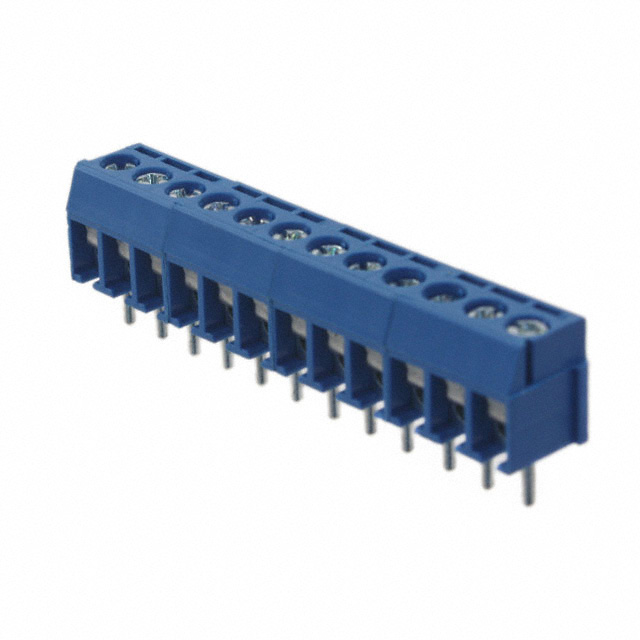

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1776275-2 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1776275-2 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1776275-2 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | TERM BLOCK 12POS SIDE ENT 3.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.143 | $0.87 | $0.815 | $0.724 | $0.709 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $0.653 | $0.59 | $0.524 | $0.492 | ||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1776275-2 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | TERM BLOCK 12POS SIDE ENT 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 80184 pcs | Data sheet | Terminal Blocks, Eurostyle1776275 Drawing |
| Category | Connectors, Interconnects | Wire Termination | Screw - Leaf Spring, Wire Guard |
| Wire Gauge | 18-26 AWG | Voltage | 250V |
| Torque - Screw | 0.28 Nm (2.5 Lb-In) | Series | Buchanan |
| Screw Thread | M2.6 | Screw Material - Plating | Steel, Galvanized - Chromate Plated |
| Positions Per Level | 12 | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 117762752 A98043 |
| Operating Temperature | -55°C ~ 105°C | Number of Levels | 1 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Mating Orientation | Horizontal with Board | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Housing Material | Polyamide (PA66), Nylon 6/6 |
| Features | Interlocking (Side) | Detailed Description | 12 Position Wire to Board Terminal Block Horizontal with Board 0.138" (3.50mm) Through Hole |
| Current | 7A | Contact Material - Plating | Brass - Copper Tin Plated |
| Color | Blue | Clamp Material - Plating | Steel, Stainless |
