1-174955-1

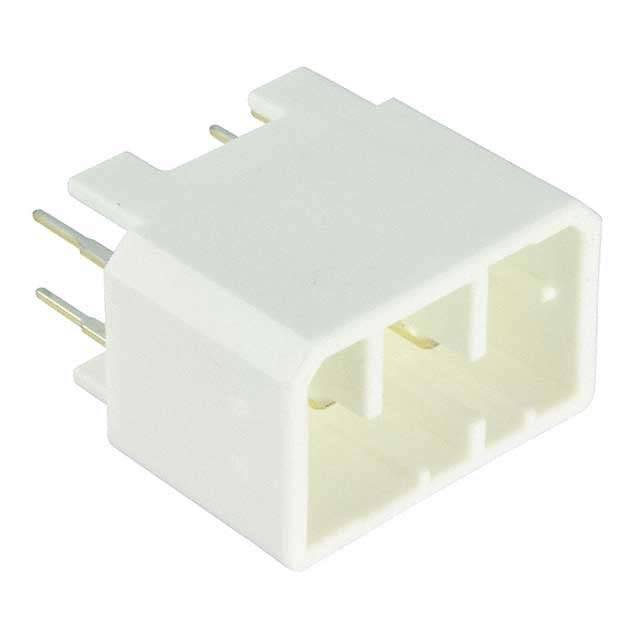

OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-174955-1 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-174955-1 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-174955-1 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | CONN RCPT 8POS VERT PCB |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 95 pcs | 190 pcs | ||
|---|---|---|---|---|---|
| $0.808 | $0.658 | $0.628 | |||
| 570 pcs | 1045 pcs | 5035 pcs | |||
| $0.524 | $0.449 | $0.398 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-174955-1 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | CONN RCPT 8POS VERT PCB | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 94737 pcs | Data sheet | 174955 Drawing |
| Category | Connectors, Interconnects | Voltage Rating | - |
| Termination | Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Multi-Lock |
| Row Spacing - Mating | 0.232" (5.90mm) | Pitch - Mating | - |
| Packaging | Tube | Overall Contact Length | - |
| Other Names | 1-174955-1-ND A123198 |
Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 2 | Number of Positions Loaded | All |
| Number of Positions | 8 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | - |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 19 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polybutylene Terephthalate (PBT) |
| Insulation Height | 0.925" (23.50mm) | Insulation Color | Natural |
| Ingress Protection | - | Features | Mounting Brackets |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 8 position |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.157" (4.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | - | Applications | Automotive, General Purpose |
