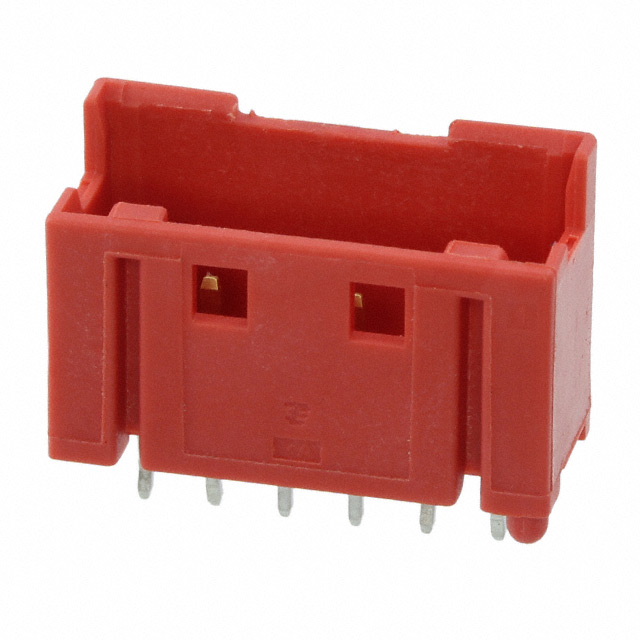

1-1747067-6
OMRON AUTOMATION & SAFETYImages are for reference only.
See Product Specifications for product details.
Buy 1-1747067-6 with confidence from Components-World.HK, 1 Year Warranty
See Product Specifications for product details.
Buy 1-1747067-6 with confidence from Components-World.HK, 1 Year Warranty
Request a Quote
| Part Number | 1-1747067-6 |
|---|---|
| Manufacturer | Agastat Relays / TE Connectivity |
| Description | GRACE INERTIA CONN 2.5 HDR ASSY |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | |
|---|---|---|---|---|---|
| $0.611 | $0.554 | $0.475 | $0.396 | ||
| 1000 pcs | 5000 pcs | 10000 pcs | |||
| $0.339 | $0.301 | $0.294 | |||
- Product parameter
- Data sheet
Product parameter
| Part Number | 1-1747067-6 | Manufacturer | Agastat Relays / TE Connectivity |
|---|---|---|---|
| Description | GRACE INERTIA CONN 2.5 HDR ASSY | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 75727 pcs | Data sheet | 1747067 |
| Category | Connectors, Interconnects | Voltage Rating | 50V |
| Termination | Kinked Pin, Solder | Style | Board to Cable/Wire |
| Shrouding | Shrouded - 4 Wall | Series | Grace Inertia, GIC |
| Row Spacing - Mating | - | Pitch - Mating | 0.098" (2.50mm) |
| Packaging | Bulk | Overall Contact Length | - |
| Other Names | A125467 | Operating Temperature | -30°C ~ 105°C |
| Number of Rows | 1 | Number of Positions Loaded | All |
| Number of Positions | 6 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Mated Stacking Heights | - | Manufacturer Standard Lead Time | 14 Weeks |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Insulation Height | 0.445" (11.30mm) | Insulation Color | Red |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Latch Holder | Detailed Description | Connector Header Through Hole 6 position 0.098" (2.50mm) |
| Current Rating | Varies by Wire Gauge | Contact Type | Tab |
| Contact Shape | Rectangular | Contact Material | Brass |
| Contact Length - Post | 0.118" (3.00mm) | Contact Length - Mating | - |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Gold |
| Connector Type | Header | Applications | General Purpose, Industrial |
